Packing, Shaft-M.S. Backup for 250 pump: What Causes Pump Leakage and How to Prevent It

Pump leakage in 250 Type centrifugal pumps commonly stems from worn shaft packing, improper installation, insufficient lubrication, or failure of the M.S. (Mild Steel) backup ring. The Packing, Shaft-M.S. Backup for 250 pump serves as a critical compression sealing system that controls fluid migration at the shaft penetration point. When the M.S. backup component degrades, or packing rings lose integrity, operational efficiency drops, unplanned downtime increases, and safety hazards emerge—particularly in oil and gas drilling environments where pressure differentials and abrasive fluids accelerate seal deterioration.

​

Understanding Pump Leakage in 250 Pumps: Root Causes and Operational Impact

Leaking shaft packing in 250 Type centrifugal pumps is a problem that drilling contractors and industry users have to deal with all the time. Braided packing rings squished inside a stuffing box form a controlled barrier around the spinning shaft and help the closing system work. Shaft packing systems need a small, controlled leakage rate—usually 40 to 60 drops per minute—to lubricate the interface and get rid of frictional heat. This is different from mechanical seals, which try to stop all leaks.

The M.S. backup ring is an important part of this assembly. This mild steel part is placed behind the main packing rings and stops the softer packing material from pushing its way into the pump's innards when the pressure is high. The closing system loses its structural support when the backup ring corrodes, wears unevenly, or is not installed at all. The packing then deforms in a way that makes it possible for extra fluid to escape.

Several things speed up the failure of seals. When drilling solutions with sand or grains are used, they wear away packing fibers and leave marks on the shaft sleeve surface. When packing materials and flowing fluids don't react chemically, they grow or break down. Dimensional instability is caused by thermal cycling that happens because of intermittent operation. A common installation mistake is not adjusting the glands correctly. If they are too tight, they can overheat and carbonize, or if they are too loose, they can leak without being controlled.

The effects on operations go beyond fluid loss. When there is too much loss, it pollutes the work area, makes it more likely for people to slip, and, in oil drills, it can start a fire when hydrocarbon-based fluids touch hot surfaces. As internal recirculation goes up, pump efficiency goes down. Shaft sleeves wear out quickly and need to be replaced, which is expensive. When drilling plans are thrown off by unplanned shutdowns, day-rate losses quickly rise above the cost of proper preventive maintenance.

When purchasing managers look at how reliable a pump is, they need to know that the quality of the seal has a direct effect on the total cost of ownership. A well-designed and well-kept shaft packing method with good M.S. backup parts can work for 3,000 to 5,000 hours without needing to be serviced, but materials that aren't up to par could break within weeks of being used in harsh circumstances.

How to Install and Maintain Shaft Packing with M.S. Backup on 250 Pumps

Whether shaft packing lasts as long as it's supposed to or breaks before its time depends on how well it was installed. We suggest a methodical technique that takes into account all of the important factors.

Check the shaft cover for damage and surface finish before installing it. The sleeve should have a 32 RMS roughness, which means it should be smooth enough not to cut packing fibers but rough enough to keep the lubricant in. Take out all the old packing stuff and clean the filling box really well. Make sure that the M.S. backing ring fits the shaft diameter and stuffing box depth requirements for your 250 Type pump.

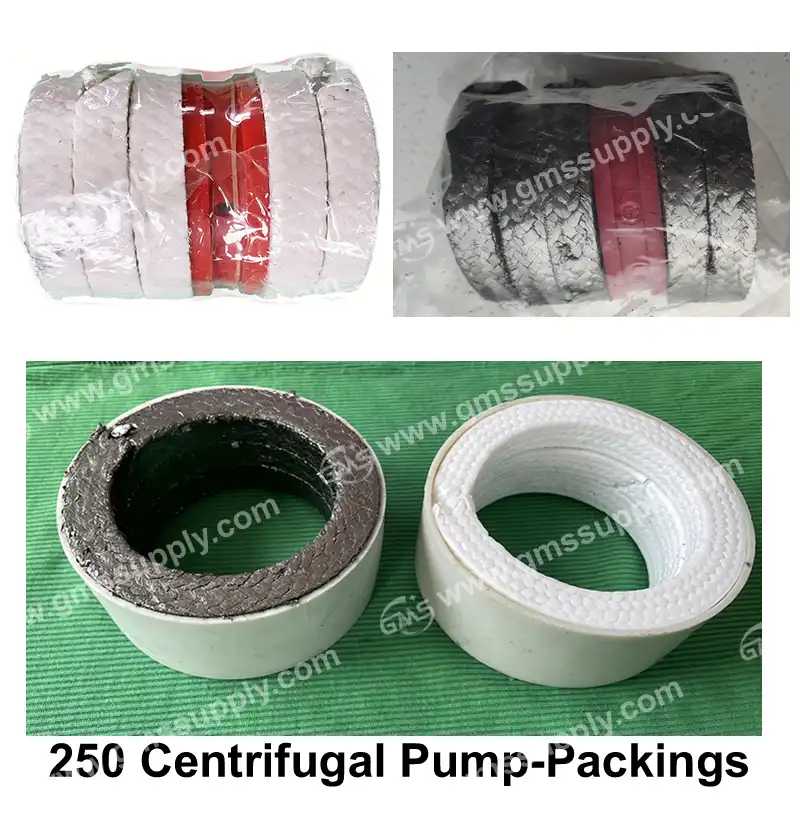

GMS offers different types of shaft packing for 250 pumps, such as the P25PMSG (P/N 648402600), which is made of Material: Graphite Acrylic, and the P25PMSK (P/N 661007005), which has a lantern ring arrangement. Choose the material based on the temperature of the fluid, its chemical make-up, and its pressure grade. To keep the fibers from getting twisted, cut the packing rings at a 45-degree skive angle. There shouldn't be any holes at the point where the rings meet the shaft.

Place rings one at a time, making sure each one is firmly in place in the stuffing box before adding the next one. To get rid of continuous leak paths, space the joints 90 degrees (for four-ring sets) or 120 degrees (for three-ring sets). When using lantern ring configurations like the P25PMSK, make sure the ring is at the right depth so that it lines up with the flush port. The M.S. backup ring is put on last and supports the pump's interior rigidly.

Tighten the gland follower by hand at first. Start the pump and give it time to get to the right temperature. Tighten the gland nuts slowly, one quarter turn at a time, while keeping an eye on the rate of leaking. The goal is a drip that can be seen and keeps the oil going without losing too much. Too much tightening causes too much heat, which breaks down the packing and hurts the shaft sleeve.

During busy periods, routine inspections should happen once a week. Check for regular leakage patterns; rapid changes could mean that the packing has failed or consolidated. Check the area around the shaft for damage or scoring. If you need to, readjust the gland to keep the right drip rate. When leaking can't be stopped by adjusting the packing, when obvious fiber damage happens, or after the manufacturer's suggested service interval, the whole packing needs to be replaced.

The M.S. backup ring usually lasts longer than multiple packing changes, but it should be checked for rust or deformation every time it's serviced. When using acidic drilling fluid, replacing it once a year keeps it from breaking down without warning.

Choosing the Right Shaft Packing for 250 Pumps: Materials and Performance Comparison

Material choice has a big impact on how well seals work and how long they last in 250 Type centrifugal pumps. We have three main choices, and each one is designed to work best in a certain setting.

This hybrid structure blends the thermal conductivity and lubricity of graphite with the structural stability of an acrylic binder. The graphite part effectively gets rid of contact heat because it has a thermal conductivity greater than 100 W/m·K. Acrylic support keeps the shape stable and keeps the fibers from separating. With temperatures up to 500°F and pressures up to 500 psi, this material works great for oil drilling. The ability to lubricate itself cuts down on shaft wear and increases the time between maintenance visits.

Aramid fiber (Kevlar) packing has a very high tensile strength for use in high-pressure situations. Because it doesn't wear down easily, it can be used in drilling mud that has sand or rock pieces in it. But because Kevlar is naturally rough, the material used for the shaft sleeve needs to be carefully chosen—minimum 500 Brinell hardness or ceramic coating—so that it doesn't score. Kevlar corners and graphite faces are used together in hybrid constructions to balance strength and shaft protection.

The M.S. when a centrifugal pump is working, high differential pressures can cause the packing to extrude. The safety ring provides hard support that stops this from happening. Because it is stable in terms of size, the gland loading stays the same. Rubber backup options get smaller over time and need to be adjusted often. In oil and gas drilling, where pumps work all the time at different pressures, the mild steel option is more reliable over time and requires less maintenance.

Mechanical seals and shaft packing systems work in very different ways to keep things sealed. Mechanical seals stop almost all leaks, but they fail horribly when the seal faces crack or the secondary seals wear out. Shaft packing wears out slowly, giving warnings before the seal is completely lost. Because they are easy to use and can be replaced without special tools, packing systems are better for drilling sites that are far away and may not have access to extra parts or repair experts.

Preventing Pump Leakage: Strategic Approaches and Proven Solutions

Active seal management increases pump uptime and lowers operating costs by a large amount. The base starts with precise specifications, like making sure that the packing material, backup ring design, and gland configuration are all matched to the specific needs of the service, not just general suggestions.

The most common ways that installations go wrong can be avoided if field workers are properly trained. We've seen many instances where operators tightened gland followers too much at startup, which damaged the packing right away. On the other hand, not enough beginning tension led to too much leakage, which removed lubricants and sped up wear. The best results are always achieved by following a structured break-in procedure that starts with hand-tight gland pressure and gradually changes it over the first hour of operation while keeping an eye on temperature and drip rate.

Failures that aren't expected can be avoided by using a predictive repair plan. Vibration analysis finds problems with misaligned shafts or worn bearings before they hurt the packing. Thermography finds hot spots that mean there isn't enough lubrication or there is too much pressure on the glands. If you look at how often leaks happen over time, you can see that seals wear down over time. This way, you can replace them during planned downtime instead of having to make emergency repairs.

The quality of the material has a direct effect on how long it lasts. Poor packing uses recycled fibers, not enough lubricant, or braiding that isn't uniform, which makes leak tracks. The M.S. has a limit for size errors. The backup ring changes how evenly the gland force is spread. GMS makes sure that every P25PMSG and P25PMSK assembly meets ISO 9001 standards by keeping tight quality control throughout the whole production process, from checking the raw materials to doing the final measurement inspection.

New and improved closing solutions are always being made. In hybrid packing structures, different types of fiber are grouped together in a single set. The position of each ring is optimized for a specific purpose, with chemical resistance at the fluid end, abrasion resistance at the atmospheric end, and temperature management in the middle. Some operators now use condition monitoring sensors that keep an eye on the temperature and pressure of the stuffing box all the time. These sensors send data to maintenance management systems so that automated alerts can be sent.

Procuring Shaft Packing with M.S. Backup for 250 Pumps: A Buyer's Guide

When looking for a reliable supplier for important pump parts, you need to look at more than just price quotes for Packing, Shaft-M.S. Backup for 250 pump MCM P/N P25PMSG. To lower the risk in the supply chain and make sure the quality of the parts, purchasing managers should look at how well suppliers do in a number of areas.

If a company has ISO 9001 certification, it means that its quality control methods for creation, production, and testing are well-documented. This standard makes sure that the quality is the same from batch to batch and that problems can be tracked down. You can get copies of certificates and check their present state in the registrar's records.

The provider should offer application engineering help to make sure the material works with your specific pump types and fluid conditions. Trial-and-error methods are expensive, but detailed installation instructions, troubleshooting guides, and quick technical communication can save you a lot of money. GMS has support staff with a lot of knowledge who know how to work with MISSION, MCM, HALCO, Harrisburg, and TSC pump setups.

When seals fail without warning, new parts need to be sent right away to keep downtime to a minimum. Suppliers who keep stock on hand can ship within days instead of weeks. GMS keeps P25PMSG, P25PMSK, and other similar setups for 250 Type pumps in stock. Standard things usually arrive in one week. This ability to respond quickly makes it easier for drilling companies and equipment dealers to keep less inventory on hand.

Shaft packing assemblies need to perfectly match the diameter of the shaft, the size of the stuffing box, and the pressure ratings. To make sure the pump fits right, when you place your order, you should include the maker, model number (like MISSION Magnum 250), and existing part numbers (like 661007005, 648402600, etc.). The supplier's dimensional drawings and cross-reference tables help you make sure that the parts will work together before you buy them.

Professional sellers are different from transactional vendors because they offer support after the sale, such as help with installation, performance issues, and guarantee issues. Set up ways to communicate and how long you expect responses to take before making large orders.

The lowest unit price often hides higher overall costs that come from things breaking down early, having to pay extra to ship substitutes quickly, and not being able to make as much. Instead of using the initial buy price to figure out the cost per working hour, use the expected service life. Even tho they cost more up front, premium materials that double the time between services usually have lower lifecycle costs.

Conclusion

Understanding how shaft sealing systems in Packing, shaft -M.S. Backup for 250 pump fail, following the right installation steps, choosing the right materials, and setting up preventative maintenance schedules are all important parts of managing these systems well. The M.S. backup ring is an important structural part that keeps the integrity of the packing under the tough conditions that are common in oil and gas drilling. When buyers choose high-quality parts from reputable companies like GMS and install them correctly and regularly, along with trained installation methods and regular checks, operators get much more reliable pumps, lower maintenance costs, and safer operations for the whole life of the equipment.

FAQ

1. How Often Should Shaft Packing Be Replaced in 250 Pumps?

When to replace something depends on how it's being used, but for quality materials in normal oil drilling situations, the service life ranges from 3,000 to 5,000 hours. This gap is shortened by abrasive fluids, high temperatures, or high-pressure activity that goes on all the time. The most reliable way to tell when to replace something is to look at it visually during regular maintenance. Look for damaged fibers, too much wear, or the inability to stop leaks by adjusting the gland. Set up a way to keep track of when things were installed and when they were used so you can find patterns that are unique to your tools and situations.

2. Can M.S. Backup Packing Handle Corrosive Drilling Fluids?

The mild steel backup ring can handle most drilling fluids made from oil and water that have a pH level from normal to slightly alkaline. Fluids with a pH level below 4 or strong oxidizers may eat away at the steel over time. In these situations, stainless steel backup rings are better because they don't rust. Chemical compatibility tables should be used to choose the packing material, which could be graphite, PTFE, or Kevlar. If you give GMS technical support information about the fluid makeup and working parameters, they can suggest the right combinations of materials.

3. What Are the Warning Signs of Packing Failure?

When the rate of leaking goes up quickly compared to regular drip patterns, it means that the seal is breaking down. If you see discolored fluid or fiber fragments in the leak, it means that the material has broken down. An infrared temperature or touch can show that the stuffing box is too hot, which means that it is not oiled enough or is too tight. Scoring on the shaft sleeve, which looks like lines or a rough surface, is caused by sharp packing wear or contamination. If you take care of these signs right away by adjusting or replacing them, you can avoid catastrophic seal failure and shaft damage.

Ready to Source Reliable Shaft Packing Components?

GMS is ready to help you seal your 250 pump needs with high-quality Packing, Shaft-M.S. Backup for 250 pump options. Our ISO 9001-certified production makes sure that each P25PMSG (P/N 648402600) and P25PMSK (P/N 661007005) assembly meets the performance requirements for MISSION, MCM, and other suitable pump types. We've been in the oil and gas drilling business for more than ten years, so we keep a lot of stock on hand so we can deliver quickly—usually within a week—along with expert technical support and solutions that are flexible enough to fit your needs. Email our team at sales@gmssupply.com to talk about your unique needs, get technical datasheets, or set up a sample review. As a dedicated Packing, Shaft-M.S. Backup for 250 pump suppliers, we help drilling contractors and equipment distributors cut down on downtime and keep maintenance costs low by providing them with reliable parts and expert advice.

The above-mentioned brands are used for part number reference only. GMS is not an authorized agent or representative of any of the brands mentioned.

References

1. Fluid Sealing Association Technical Handbook, 5th Edition (2019), "Compression Packing for Rotating Equipment."

2. American Petroleum Institute Standard 682, "Pumps—Shaft Sealing Systems for Centrifugal and Rotary Pumps."

3. Karassik, Igor J., et al., Pump Handbook, 4th Edition, McGraw-Hill Professional (2008), Chapter 9: "Sealing Systems."

4. Industrial Press Technical Standards Manual, "Stuffing Box Design and Packing Selection Criteria for Centrifugal Pumps."

5. National Association of Corrosion Engineers Publication 6A193, "Material Selection for Oil Field Equipment in Corrosive Environments."

6. Society of Tribologists and Lubrication Engineers Special Publication SP-65, "Friction and Wear Characteristics of Braided Packing Materials in Rotating Shaft Applications."
