Seal Mechanical-250 Centrifugal Pump (MISSION 22451-1/ MCM P25MS/TT): Installation & Maintenance Tips

Installing and maintaining the Seal Mechanical-250 Centrifugal Pump (MISSION 22451-1/ MCM P25MS/TT) correctly is essential for getting it to work perfectly in tough industrial settings. The GMS-250 mechanical seal assembly (P/N: GMS-250, suitable with MISSION 22451-1 and MCM 250 P25MS/TT) is a very important sealing device designed for oil and gas drilling, especially for solid control and cementing tasks. By following the right construction steps and regular maintenance schedules, you can extend the life of the seals, avoid costly downtime, and make sure that the pump works consistently in harsh and high-pressure environments.

Introduction

Today, industrial companies are under more and more pressure to keep maintenance costs low while also getting the most out of their tools. The Seal Mechanical-250 Centrifugal Pump meets all of these needs. It works well in oil and gas drilling, where the dependability of the equipment has a direct effect on project timelines and profits. For more than ten years, GMS has helped procurement managers, MRO buyers, and technical fleet managers who need reliable sealing options that can handle tough drilling conditions.

This guide talks about the real-world problems you face every day, like avoiding unplanned shutdowns, making sure parts last longer, and making sure they work with current MISSION Magnum and MCM 250 pump systems. The information in this article will help you make choices that protect your investment and make your maintenance tasks easier, whether you're in charge of a drilling contractor's fleet of equipment or looking for parts for upstream operations. We've boiled down our technical knowledge into steps you can take right away that will give your operations the technical depth they need while still respecting your time limits.

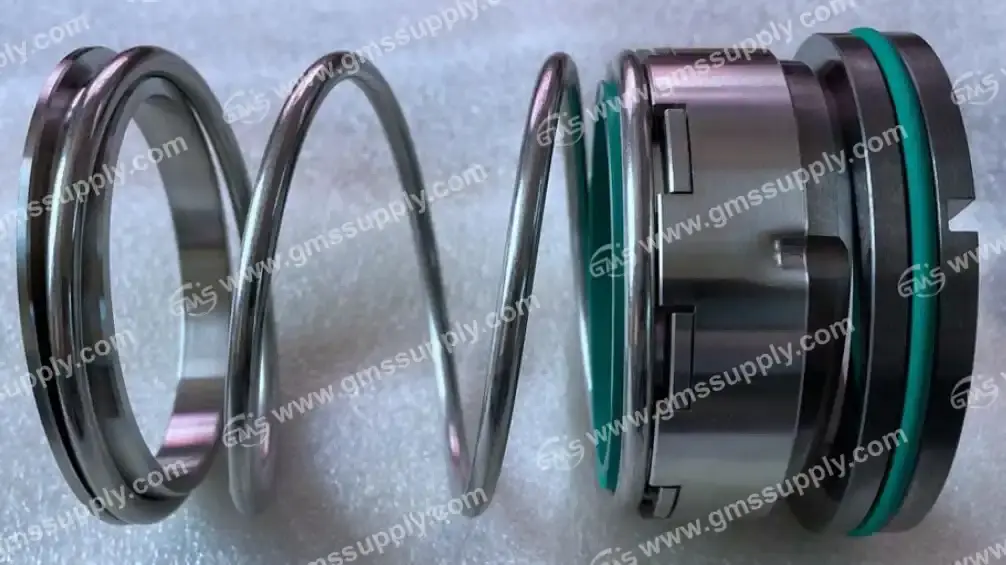

Understanding the GMS-250 Mechanical Seal Design

The GMS-250 seal system is an example of advanced engineering that was made to handle the unique difficulties of drilling fluid. This tungsten carbide face seal (tungsten-to-tungsten design) is different from other water pump seals because it can handle drilling mud, slurries with a lot of sand, and high-viscosity bonding fluids that would quickly destroy ceramic or carbon seal faces.

The seal fits the normal 2.500-inch shaft layout in MISSION Magnum and Sandmaster centrifugal pumps. These pumps are made for solid control systems like desanders, desilters, and mud transfer. The balanced seal design can handle box pressures of up to 250 PSI and shaft speeds of up to 3600 RPM, which are normal operating conditions for systems that drill continuously.

In these situations, in the GMS-250 mechanical seal assembly (P/N: GMS-250, suitable with MISSION 22451-1 and MCM 250 P25MS/TT), success is driven by the choice of material. The tungsten carbide sides that have been sintered are harder than 9.5 on the Mohs scale. This is necessary to resist the scouring action of silica particles and drilling chemicals. The rubber parts, which are usually FKM (Viton) O-rings, can withstand temperatures up to 200°C and are chemically resistant to oil-based muds and H2S. The 316 stainless steel gear doesn't rust when it comes into contact with brine and acidic chemicals that are often used in drills.

This design takes into account three important types of failure: premature seal face washout from abrasive particles, pump shaft degradation from poor sleeve pairing, and environmental control failures that cause problems with following the rules. The seal is the main thing that keeps fluid from getting into the bearing units, which is a failure that usually means the whole pump has to be rebuilt.

Pre-Installation Preparation and Site Assessment

Before touching any parts of the Seal Mechanical-250 Centrifugal Pump, Replace Magnum or Sandmaster Pump, you need to do a good job of installing the seal. We suggest a methodical approach to planning that finds possible issues early on, before they affect the performance of the seal.

First, look for damage in the pump shaft and seal chamber. Check the shaft sleeve diameter to make sure that the 2.500-inch size fits the GMS-250 seal. Look for lines, pits, or scoring on the shaft surface where the rotating seal face will sit. Even small flaws can lead to leaks. The shaft runout should be within 0.002 inches. If it's too large, it means the bearings are wearing out too quickly, which will destroy the new seal before it's time.

Check the seal chamber to make sure it is the right size according to the MISSION. If there is debris, solid drilling mud, or rust buildup in the chamber, it needs to be cleaned completely. If you want to get the most out of your seals in rough service, make sure the flush holes are clear and work.

Check the technical state of the pump before replacing the seal. The effectiveness of the seal is affected by bearing play, coupler alignment, and impeller clearances. Putting a new seal on a pump whose bearings are already worn out is a waste of time and money, and it creates fake failure paperwork that hides the real maintenance problems.

Do not use petroleum-based solvents on FKM elastomers when cleaning the seal face. Also, make sure you have clean, lint-free cloths, a torque wrench that is set for the gland bolt specs, and the right lubricant for installing the O-ring. Getting everything ready before taking it apart cuts down on the time that the system is open, which lets contamination in.

Step-by-Step Installation Process

Every step in the process of installing the GMS-250 seal needs close attention to detail. In our technical help experience, the main reason seals fail too soon is that they are installed too quickly.

First, carefully take off the old seal assembly, making sure to keep track of where each part is and how it is oriented. Get rid of all the old gasket material, drilling mud leftovers, and mineral layers from the shaft and seal chamber. Use chemical cleaners that are safe for your pump's materials. For example, acidic cleaners can damage stainless steel parts.

Check the new MCM P25MS/TT GMS-250 seal parts carefully before putting them together. Check the seal faces for damage that happened during shipping. Even tiny cracks will make the seal fail right away. Make sure that all of the O-rings and seals are there and the right size. The tungsten carbide sides should have the typical mirror shine that shows they have been lapped correctly.

Use a suitable oil to coat the shaft sleeve and seal the O-rings. Do not use too much oil, as it can attract bits that are rough. Slide the rotary seal assembly onto the shaft carefully, making sure that the drive mechanism (pins or rings) fits properly with the pump's drive collar. If the seal doesn't slide easily and doesn't stick, it means that something is out of place or there is trash in the way.

Place the fixed seal seat into the seal chamber, making sure the O-ring fits correctly in its gap without turning or pinching. Put the gland plate in place and thread the bolts finger-tight at first. Using a cross-pattern tightening sequence, slowly tighten the gland bolts to the required level of force, which is usually 20 to 25 ft-lbs for this seal size, but check the installation manual that came with the pump to be sure. If you don't tighten it evenly, the seal faces can become distorted, which can lead to leaks and early wear.

After fitting, turn the shaft by hand. You should feel resistance that is smooth and steady. Rough spots, binding, or clicking sounds are all signs of fitting issues that need to be fixed right away before the pump starts up.

Post-Installation Testing and Commissioning

When you do it right, commissioning verifies your installation work and sets a standard of performance data that you can use to make choices about future maintenance. We've come up with a way to test that finds problems before they become major problems.

If your operation rules allow it, start with a hydrostatic pressure test. Slowly raise the pressure inside the seal chamber until it reaches normal working levels while keeping an eye out for leaks. Small amounts of weeping during the initial pressurization are normal as the seal faces mate and settle. Continuous leaking, on the other hand, means there are problems with the fitting.

Using an infrared thermometer, check the temperature of the seal chamber when the pump is first turned on. The temperature of the seal face should stay between 10 and 15°C above or below the temperature of the fluid during normal operation. Making too much heat is a sign of poor running, imbalance, or damage to the face. We suggest that you keep an eye on it all the time during the first hour of operation.

If you have access to handheld sound research tools, use them to look for strange vibrations. Baseline measures of shaking are useful for diagnosing problems and fixing them in the future. Sudden increases in vibrations often happen days or weeks before seals fail, giving you time to take action.

If your system has this feature, make sure the seal chamber cleaning is done right. Particles don't build up on seal faces when there is enough clear flow, which greatly increases seal life in rough environments. Flow rates should be the same as what the pump maker says they should be. Not flushing enough is the main reason why seals wear out faster in drilling mud use.

Write down all the information about the installation, the test results, and the starting working parameters. This information is very helpful for insurance claims, figuring out what went wrong, and planning upkeep.

Routine Maintenance Protocols for Extended Service Life

For the Seal Mechanical-250 Centrifugal Pump (MISSION 22451-1/ MCM P25MS/TT), operations that last more than 2,000 hours are different from seals that fail within 500 hours because they get proactive care. Our repair suggestions are based on looking at patterns of failure in hundreds of drilling activities.

During activities, leaks, strange noises, and too much heat should be checked every day. If you catch small leaks early, you can usually control the shutdown so that you can replace the seal instead of having to make emergency fixes during crucial drilling phases. If you hear grinding or squeaking sounds coming from the pump, it means that the seal face is damaged or there are problems with the bearings.

Seal chamber pressure checks, flush system checks, and seal face temperature checks should all be done once a week as part of maintenance. Cleaning the outside can help keep drilling mud from building up, which can trap heat and speed up the seal's breakdown. Check the links between pipes and the clean lines for blockages that could make seal cooling less effective.

Predictive maintenance can be done through thorough checks once a month. Check the state of the bearings, the alignment of the shaft, and the soundness of the coupling. Keep in mind that seal failures are often caused by mechanical issues in other parts of the pump system. Vibration analysis and oil analysis (if the bearing housing lets you take samples) can find problems before they get bad enough to damage the seals.

The length of time between seal replacements depends a lot on how harsh the application is. Tungsten carbide plugs can last for years when they are used with clean water. 2,000 to 4,000 operating hours is a good amount of time for heavy drilling mud with a lot of sand in it. Keep track of the seal's life for your unique application to set reasonable repair schedules and determine how many parts you need to keep on hand.

Lubricating pump bearings according to the manufacturer's instructions affects the life of the seals immediately. Seals are usually destroyed as shaft deflection and sound getting worse in a bearing failure development. We suggest that in serious situations, bearings be replaced on a more conservative plan than being used until they fail.

Troubleshooting Common Seal Performance Issues

By knowing the signs of failure, you can tell the difference between seal problems and other pump problems, which saves money on replacing seals that aren't needed and helps you find the root causes.

When there is immediate loss after installation, it's usually because of mistakes made during installation, like damaged seal faces, twisted O-rings, or incorrect gland bolt pressure. Check the installation steps again before you assume that a part is broken. Cracks in the seal face can be seen when the machine is magnified because of heat checking or thermal shock during dry runs. This shows up as small radial cracks in the tungsten carbide and happens when pumps are run without enough fluid flow.

A slow rise in leaking over a few weeks could be a sign of normal wear or a contaminated seal face. When used in rough conditions, tungsten carbide faces wear down in ways that make it impossible for the seal to keep face contact. This is not an early failure; it is a normal end of life. If there are changes in sound along with sudden leaks, it's more likely that the bearings or shaft are broken than the seals.

If the seal chamber temperature is too high without any leaks, it means that the seal face isn't properly oiled. Make sure the flush system is working properly and that enough fluid is flowing through the pump. Dry running, even for a short time, can glaze seal faces, making it harder for them to form good sealing films. After taking it apart, the white layers on the seal faces show that dry running caused damage.

If you see carbon trails on the fixed seal seat, that means that electricity is flowing through the seal. Make sure that the pump is properly grounded. When drive pins or lugs wear down, it means there are problems with torsional shaking or connection that need to be fixed mechanically instead of replacing the seals.

Strategic Procurement and Parts Sourcing

When you buy right, you balance the quality of the parts, the dependability of delivery, and the total cost of ownership. As a company that supplies drilling operations around the world, we know what expert buyers care about the most.

The GMS-250 seal assembly is kept in large stock by GMS, and typical versions can be shipped within one week from stock. This approach to keeping inventory helps you keep equipment downtime to a minimum—drilling operations can't wait weeks for seal parts. Our ISO 9001 certification makes sure that our manufacturing is consistent and that we can track down materials, which is very important for businesses that need to have written quality assurance.

The GMS-250 meets the requirements of MISSION 22451-1 in terms of size and performance, and it does so at a reasonable price. Volume buy programs offer even more cost savings for businesses that are in charge of multiple pump setups or stocking warehouses for distributors. When you order in bulk, you save money on each unit and make sure that parts are always available for emergency fixes.

In our business, component suppliers stand out because of their technical help. The applications engineers at our company know how solid control systems and sealing processes really work. We offer startup help, repair support, and failure analysis support to protect your equipment investment.

Warranty coverage for production flaws and material failures in the Seal Mechanical-250 Centrifugal Pump (MISSION 22451-1/ MCM P25MS/TT) is part of after-sales support. Keep good records of how things were installed and how they were used to strengthen insurance claims when things break down too soon. We work together to find the root causes, which could be problems with parts or issues with how things are run. This creates a professional feedback process that makes things more reliable.

When planning repair shutdowns or keeping track of parts supplies, lead time consistency is important. Our established industrial and supply chain partnerships keep deliveries on time even when demand in the industry goes up. Regional distribution helps businesses in North America with shorter travel times than straight shipping from overseas.

Optimizing Total Cost of Ownership

Buying seals involves more than just the initial buy price. We recommend judging seals based on their total cost of ownership, which includes the time and money needed to install them and the number of times they break down.

The GMS-250 costs more at first because it is made of tungsten carbide instead of ceramic or carbon, but it lasts 5–10 times longer in rough drilling uses. The longer replacement interval cuts down on the cost of repair work and keeps production from stopping too often. When operations keep track of total costs, they regularly find that premium seal materials lead to lower running costs per hour.

This math works best when you choose the right cover for the job. The normal FKM rubber shape works with most oil-based drilling muds and normal temperature ranges. Specialized elastomer materials work better in situations with bio-diesel-based muds or temperatures above 180°C. Before you place an order, please talk to our expert team about the compatibility requirements.

Total costs are cut even more by preventative repair methods. It is much cheaper to change seals during planned maintenance times than to make repairs quickly during drilling operations. Keeping the right parts on hand, especially for setups of multicycle pumps, cuts down on shipping costs and the stress on repair teams when things go wrong without warning.

The most common reason why seals fail too soon can be avoided by teaching repair staff the right way to put things. Investing in beginning training pays off because the seal lasts longer and fails less often. With every seal package, we include instructions on how to place it, and if things get complicated, we can help you remotely.

Conclusion

For the Seal Mechanical-250 Centrifugal Pump 22451-1 /P25MS/TT to work well, you need to know how to put it together the right way, follow the care rules, and make smart decisions about what to buy, all of which work together. When fitted properly and regularly kept, the GMS-250 mechanical seal assembly maintains the performance levels needed for tough oil and gas drilling jobs. We've been helping drilling workers and equipment managers for ten years, and our experience shows that when operators follow the steps in this guide, seal life and pump efficiency get a lot better. Quality parts, expert help, and good operational practices all work together to keep your equipment running and your maintenance costs low, which directly affects the success of your operations.

FAQ

1. How long should I expect the GMS-250 seal to last when it's used with drilling mud?

Service life depends a lot on how rough the fluid is, how much pressure is used, and how well it is maintained. Expect systems that handle normal drilling mud to last between 2,000 and 4,000 hours if they are well taken care of. In situations where there is a lot of sand or not enough seal cleaning, the gaps may be shorter. Failure before 500 hours is usually not due to a defective seal but to mistakes in the fitting, mechanical issues, or working conditions that are not compatible.

2. Can I use clay or carbon seal faces instead of metal ones to save money?

We strongly suggest that you don't use this replacement in drilling situations. Ceramic-carbon seals are cheaper at first, but they can't handle the shock loads and rough particles in drilling mud. Any cost savings are lost when the pump fails too soon, often within hours, and the shafts could be damaged. When it comes to MISSION pumps that handle rough fluids, tungsten carbide sides are the norm.

3. How can I be sure that it will work with my unique MISSION pump model?

The GMS-250 works with MISSION Magnum and Sandmaster models that have shafts that are 2.500 inches long. To be sure, measure the diameter of your pump's shaft sleeve. The seal's internal diameter must match exactly. Check the information on the pump's label or give our expert team the model number and serial number of your pump to make sure before you order.

Partner with GMS for Reliable Seal Solutions

GMS is ready to help you with your centrifugal pump sealing needs by providing you with high-quality parts and quick expert support. As a seller of Seal Mechanical-250 Centrifugal Pump (MISSION 22451-1/ MCM P25MS/TT) with a lot of experience, we keep a lot of the GMS-250 seal assembly (P/N: GMS-250, suitable with MISSION 22451-1 and MCM 250 P25MS/TT) in stock and can ship it within one week. Our manufacturing is ISO 9001 certified to ensure uniform quality, and our expert team helps with setup and fixes problems. Get in touch with sales@gmssupply.com to talk about your unique application needs or to get pricing and full technical specifications for your next purchase cycle.

The above-mentioned brands are used for part number reference only. GMS is not an authorized agent or representative of any of the brands mentioned.

References

1. Karassik, Igor J., et al. Pump Handbook, Fourth Edition. McGraw-Hill Professional, 2008.

2. American Petroleum Institute. API Standard 682: Pumps—Shaft Sealing Systems for Centrifugal and Rotary Pumps, Fourth Edition. API Publishing Services, 2014.

3. Lebeck, Alan O. Principles and Design of Mechanical Face Seals. John Wiley & Sons, 1991.

4. Hydraulic Institute. ANSI/HI 9.6.2: Rotodynamic Pumps Guideline for Mechanical Seal Installations. Hydraulic Institute, 2017.

5. Bloch, Heinz P. Pump Wisdom: Problem Solving for Operators and Specialists. John Wiley & Sons, 2011.

6. Neale, Michael J. The Tribology Handbook, Second Edition. Butterworth-Heinemann, 1995.
