Is the GMS 250-4X3X13 Centrifugal Pump Right for Your Rig?

When looking at centrifugal pumps for tough digging jobs, the GMS 250-4X3X13 Centrifugal Pump stands out as a unique option made for handling heavy fluids in oil and gas settings. For procurement managers, this Mission Magnum-type pump is a good mix of sturdiness, compatibility, and cost-effectiveness. It works well in solid control systems and cementing operations. If you know what this pump can do, you can make decisions that will minimize downtime and increase working efficiency across all of your drilling sites, whether you're in charge of upgrading rig equipment or planning regular repairs.

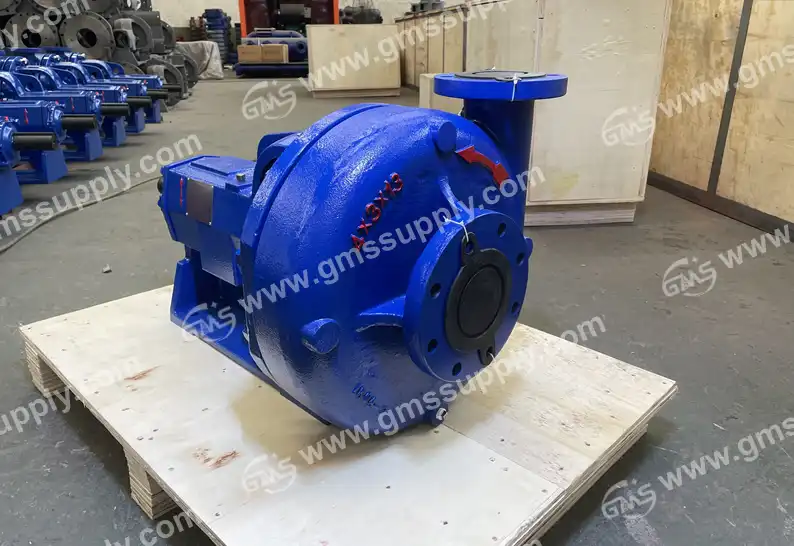

Understanding the GMS 250-4X3X13 Centrifugal Pump

The tech behind the GMS 250-4X3X13 Centrifugal Pump is the result of improving how industrial fluids are handled for more than ten years. This pump was made by GMS to solve the problems that procurement managers have finding solid tools for oil and gas drilling projects. With a 4-inch suction flange, a 3-inch outlet flange, and a 13-inch impeller, the design is a tried-and-true shape that combines flow capacity with pressure generation.

The impeller form of this pump, which works on the idea of centrifugal force, carefully turns spinning energy into hydraulic pressure. The wide-open rotor design lets rough solids like those in drilling mud pass through without slowing down flow rates. This is especially helpful when your rig works with fluids that contain cuts and sand, because regular water pumps usually break after a few weeks of continuous use.

This type is different from other volute pumps because the case is designed in a concentric way. We've greatly increased bearing life by reducing turbulence and axial pressure, which is very important when your activities are open 24 hours a day. This trait is liked by procurement managers because it directly leads to less upkeep and lower total ownership costs.

We focus on factors that affect your bottom line when we look at pump specs. Flow rates of the GMS 250-4X3X13 Centrifugal Pump range from 800 to 1100 gallons per minute, based on the speed and head needs. This range works for most solid control tasks, like desander feed systems and cementing blower jobs.

At its fastest speed, the pump can create heads of up to 550 feet, which is enough pressure for hydrocyclone processes where the efficiency of separation depends on maintaining steady pressure. The 2.50-inch shaft width doesn't bend when it's loaded, which fixes a problem we've seen a lot with lighter-duty options that operators sometimes try to fix to save money.

The choice of material is also very important. The rotor and housing are made of High Chrome Iron that meets ASTM A532 Class III Type A standards and is harder than 60 HRC. When working with sand-filled fluids, this metal gives better wear resistance, which makes parts last three to five times longer than standard cast iron options.

This pump is often the main unit that feeds desanders and desilters in solid control systems. Your mud engineer needs stable pressure delivery to keep the hydrocyclone working well; changes in feed pressure directly hurt the solids sorting process. We made the GMS 250-4X3X13 Centrifugal Pump so that the pressure stays stable even when the suction changes. This happens a lot when the amount of mud in a tank changes during digging.

There are different problems that come up in cementing processes. When plugs are bumped and displaced, pumps have to deal with fluids that have densities ranging from 8 to 20 pounds per gallon. The strong shaft and bearing system can handle these changing loads without breaking too soon, which will help you stay on plan with your cementing program.

This type of pump is being used more and more in hydraulic fracturing as mixer pressure units or superchargers. It's useful when your operations need to stay online all the time during important stimulation stages because it can handle slurries that are high in proppants even when there is a lot of shaking.

Comparing Performance and Value

Procurement workers can make better investment choices when they know where the GMS 250-4X3X13 Centrifugal Pump fits in the world of centrifugal pumps. We designed this type so that it can be used with common pumps from Mission Magnum, MCM, TSC, FORUM, Halco, Mattco, Harrisburg, and SPD Mud Hog without any issues. This flexibility is important because it means you can use the extra parts, mounting frames, and pipe connections you already have without having to pay for expensive upgrades.

There are clear benefits to the circular case architecture over traditional volute designs. Field data from workers who run continuous job cycles shows that reducing radial thrust makes bearings last 40 to 60 percent longer. This means that the pump will need less unexpected repair and fewer replacement parts over its lifetime.

When comparing the total cost of this pump to other options, buyers should look at how much energy it uses. The 13-inch rotor design's high hydraulic efficiency means that less power is used per gallon moved. This is important when running multiple pumps during a drilling program. Less energy use per unit of output has a direct effect on running costs, especially on rigs where generator capacity limits the power that can be used.

We have seen buying teams contrast horizontal centrifugal pumps like the GMS 250-4X3X13 Centrifugal Pump with vertical pump designs. Even though vertical pumps take up less room, they usually need more complicated seal systems and are harder to get to for regular upkeep. Our horizontal configuration makes field service easier. Your repair crews can replace worn-out parts without having to use special lifting tools. This cuts down on the time it takes to change parts and the safety risks that come with it.

Maintenance, Common Issues, and Troubleshooting

Setting up a proactive repair routine will protect your investment and keep it from shutting down without warning. We suggest that you look at the mechanical seal or packing gland every 500 hours of use and look for leaks that are too big, which is a sign that the seal is wearing down. Monitoring the temperature of the bearing case can help find greasing problems early on. Temperatures above 180°F usually mean there isn't enough grease, or there is contamination.

The rotor of a GMS 250-4X3X13 Centrifugal Pump needs to be checked every so often, especially when working with very rough fluids. We've seen operators increase the life of impellers by rotating their use. By keeping two impeller assemblies (with different P/Ns depending on the application needs) and switching them every 2,000 hours, inspection and repair can happen during planned maintenance windows instead of in an emergency.

Most of the time, cavitation is what goes wrong with rotary pumps. If you hear rattling sounds or feel more shaking, check the suction line conditions and make sure there is enough net positive suction head. We've found that many cavitation problems are caused by partly clogged suction strainers instead of problems with the pump. A 10-minute cleaning of the strainers often fixes problems that operators first think are caused by a problem with the GMS 250-4X3X13 Centrifugal Pump.

The life of a seal or packing in a cementing system pump depends a lot on the qualities of the fluid and the working pressure. When used with clean water, mechanical valves usually last between 4,000 and 6,000 hours. This time is cut down to 1500–2500 hours by using abrasive drilling mud. Having spare seals on hand keeps your rig from being down for long periods of time while you wait for parts to arrive.

Vibration research gives useful information for keeping an eye on conditions. During setup, baseline vibration measures are taken to set points of reference. Readings every month help find problems like worn bearings, damaged impellers, or misaligned shafts before they become too big to fix. We provide dimensional drawings that show the allowed ranges of shaft runout. This helps your repair teams figure out when to change a part.

At GMS, our after-sales service is based on the idea that drilling activities happen 24 hours a day, seven days a week. When you buy replacement parts, our ISO 9001-certified quality control system makes sure that the quality stays the same. We keep a large collection of wear parts like impellers, seal assemblies, bearing cartridges, and casing liners so that we can quickly meet your orders when your operations need parts right away.

When investigating, technical help access is important. Our tech team answers questions during work hours, which helps your staff figure out what's wrong and how to fix it. We've written down common failure modes and fixing steps based on hundreds of setups in the field. This makes it faster to fix problems with your GMS 250-4X3X13 Centrifugal Pump when they happen.

Warranty coverage gives you even more peace of mind. We stand behind the quality of our products by offering a full warranty that covers problems with both the products and the work. Our quote papers spell out in detail the length and terms of the guarantee. This makes it easy for procurement managers to see what situations are covered and how to file a claim.

Procurement and Logistics: How to Buy the GMS 250-4X3X13 Pump

When buying industrial pumps, you need to pay close attention to verifying the seller, figuring out wait times, and coordinating logistics. GMS has improved buying to cut down on the time it takes from when you ask for something to when the equipment gets to your rig site.

Working directly with our sales team at sales@gmssupply.com will guarantee that you get tools made by GMS. We have set up quality control procedures that include testing the hydraulic pressure at 1.5 times the highest working pressure and balancing the impellers dynamically to ISO 1940-1 Grade G6.3 standards. These steps of checking make sure that the structure is solid and reduce the number of failures caused by shaking that happen with cheaper options like the GMS 250-4X3X13 Centrifugal Pump alternatives.

Our prices show that we are a supplier that cares more about providing value through quality than just competing on the price of the original buy. Operators who manage multiple rigs or want to standardize all of their tools can get better deals when they buy in bulk. We work with procurement teams to make sure that purchase deals are set up in a way that fits with budget cycles and methods for managing inventory.

Lead times usually depend on how many of a popular configuration are in stock and how long it takes to make a unique setup. Because we keep a lot of pumps in stock, many of them ship within days of receiving an order. For custom builds or large orders, production schedules are needed to make sure that the work gets done on time, usually during set repair breaks or during the commissioning of a new rig.

Logistics for international shipping include coordinating paperwork, packing, and moving the goods. We take care of the paperwork for exports and work with known freight partners who know how to move drilling equipment. The right packaging keeps pump parts safe while they're in transit. We've improved our packing methods to keep things from getting damaged during the rough handling that comes with shipping things internationally to remote drilling sites.

Return policies and guarantee claim processes give you options if your equipment is broken, which doesn't happen very often. Our policies are clear and are spelled out in our terms and conditions. This way, buying managers know what they can do if problems arise. After ten years in the business, we know that sticking behind our goods is a better way to build long-term customer relationships than cutting costs in the short term.

Making the Right Decision: Is the GMS 250-4X3X13 Suitable for Your Rig?

Whether the GMS 250-4X3X13 Centrifugal Pump is the best choice for your application depends on how well the pump's specs match your operating needs. Based on technical factors and practical context, we've made an evaluation system that helps people make decisions.

Flow needs are what guide the choice of pump. If your stable control system handles 900 GPM through desanders, the pump has enough capacity and a safety cushion in case the efficiency changes due to wear. Too big of pumps loses energy, and too small of pumps cause problems that slow down the system. We help buyers match pump rates to system demand so that they can make the best choice for both present operations and expected future needs.

Pressure needs depend on the tools and pipes further downstream. For optimal performance, hydrocyclones usually need a feed pressure of 75 to 100 PSI. Figure out the total head needs by adding up changes in slope, friction losses, and drops in device pressure. The pump can create 550 feet of head, which is about 238 PSI, which is enough working margin for most drilling rig solid control setups.

Environmental factors affect the choice of tools. Temperature changes can affect the type of seal material and grease used. When the temperature outside is below freezing, you need heated shelters or seal flush systems to keep your things from freezing during quiet times. High atmospheric temperatures speed up the breakdown of lube, which means that it needs to be greased more often. We offer advice on the best seal materials and lubrication plans for a wide range of working conditions, from the Arctic in Alaska to the desert in Arizona.

Integration is easier when it works with current systems. The GMS 250-4X3X13 Centrifugal Pump is designed to be dimensionally interchangeable, which means that the mounting areas, pipe connections, and coupling dimensions are all the same as they are in the industry. This compatibility cuts down on installation work and gets rid of the need for custom construction. This means that your rig staff can change pumps during planned maintenance windows without having to wait for welding or machining to finish.

Operators in the drilling markets across North America have chosen GMS pumps as part of their efforts to standardize their fleets. Reliable performance, easy access to parts, and quick support are all things that work well with operating goals that put uptime over the cost of buying new equipment. Procurement managers like how our team communicates clearly and is technically skilled throughout the sales and support process.

Conclusion

To choose the best centrifugal pump for oil and gas drilling, you have to weigh performance requirements, cost, and the stability of the seller. The GMS 250-4X3X13 Centrifugal Pump has been used successfully in solid control systems and filling tasks where equipment failure costs a lot of money in lost time. Our ISO-certified production processes, large collection of parts, and quick technical support give purchasing managers the confidence they need to choose equipment providers. Most people who are in charge of drilling rigs find that this pump meets their operating needs after comparing their specific flow, pressure, and connection needs to what it is said to be able to do.

FAQ

1. What industries benefit most from the GMS 250-4X3X13 Centrifugal Pump?

This pump is mostly used for oil and gas drilling, such as onshore and offshore rigs with solid control systems and filling jobs. The design works with rough fluids that contain drill bits, so it can be used by research and production companies that work in a wide range of geological formations.

2. How frequently should maintenance be performed on this pump?

In harsh service, we suggest checking the mechanical seals visually every 500 hours and replacing them completely every 1500 to 2500 hours. Lubricating a bearing according to the manufacturer's instructions based on how it will be used is important. The amount of abrasiveness in the fluid determines how often the impeller needs to be inspected. Usually, every 2000 hours is enough time to change it before its performance drops and affects the efficiency of equipment further downstream.

3. What warranty coverage does GMS provide?

Our guarantee covers problems with the materials and work that were used in the making process while the product is being used normally. Quote papers spell out the exact length and terms of the guarantee, which covers replacing broken parts. As long as you follow our instructions for installation and upkeep, the warranty will be good for the full coverage time.

Partner with GMS Supply for Your Centrifugal Pump Needs

Buying equipment has effects on your business that last long after the purchase order is accepted. We at GMS have been providing reliable fluid handling solutions to drilling operators, sourcing managers, and MRO buyers for more than ten years. Our GMS 250-4X3X13 Centrifugal Pump is made to ISO 9001 standards and comes with quick customer service after the sale. It meets the quality and compatibility requirements of your operations. We keep a wide range of parts and technical know-how that keep your rigs going because we are a well-known source that focuses on mission-critical applications. Please email our team at sales@gmssupply.com for full product information, price quotes, and shipping times that fit your needs. We're ready to help your business succeed by giving you tried-and-true pumping options.

The above-mentioned brands are used for part number reference only. GMS is not an authorized agent or representative of any of the brands mentioned.
