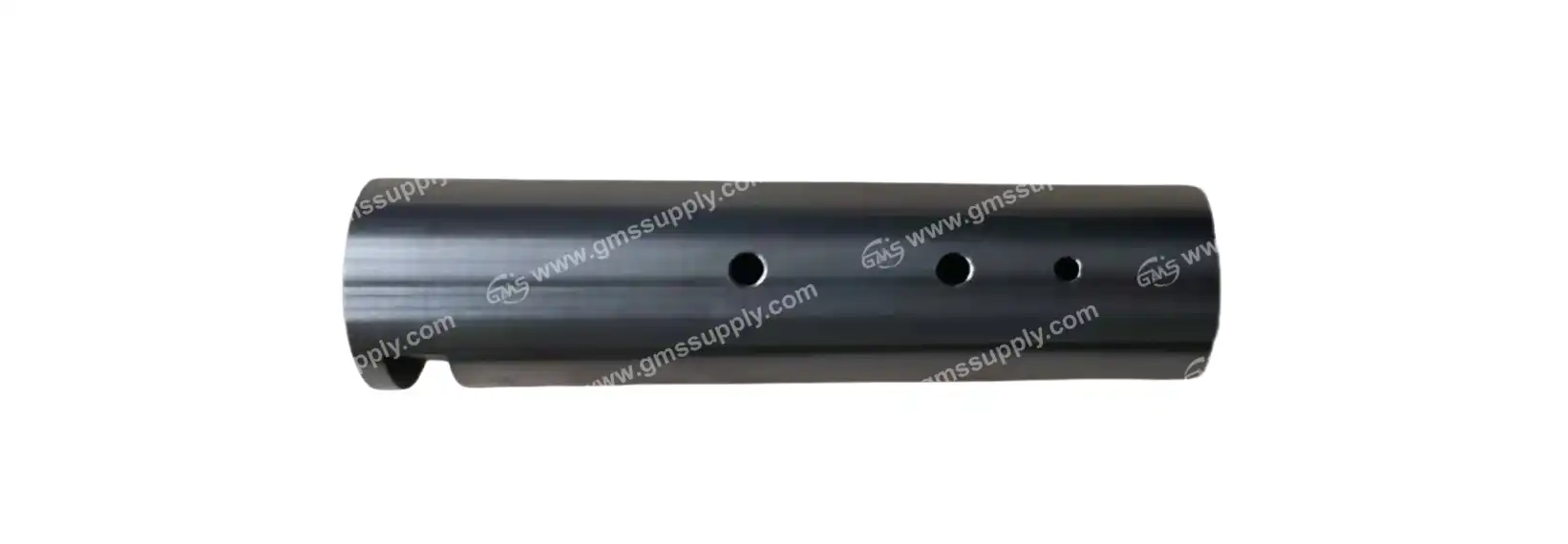

SHAFT GEAR 30151960 Application in Top Drive Systems

In top drive systems, the SHAFT GEAR 30151960 is an important transmission part that makes accurate mechanical motion transfer possible in drilling operations. It keeps the TDS-11SA and TDS-9SA top drive models' pipe handling mechanisms and power delivery systems in line. As oil and gas drilling operations need more and more reliable tools, this SHAFT GEAR 30151960 has become necessary to make sure that the system stays intact and operations keep running during tough drilling rounds.

​​​​​​​​​​​​​​​​

​​​​​​​​​​​​​​​

Understanding Shaft Gear 30151960 in Top Drive Systems

The SHAFT GEAR 30151960 works inside the shot pin assembly and controls the flow of spinning force while the pipe is connecting and disconnecting. When drilling teams join together pieces of drill pipe on the rig floor, this gear shaft keeps the rig in the right place the whole time. The mechanical design handles specific problems in the top drive use. Parts that are used in drilling are exposed to repeated shock loads, shaking, and big changes in force. These pressures are spread out over more than one contact area in the compound gear setup. This reduces the specific wear patterns that usually cause simpler shaft designs to break too soon, and increases the time between service visits and lowers the amount of unexpected repairs that get in the way of drilling plans.

The SHAFT GEAR 30151960 is made of sharpened alloy steel that has a good mix of stiffness in the middle and resilience on the outside. Heat treat process makes the outside harder so it can fight wear from normal abrasives in harsh conditions. In oil and gas drilling projects where equipment goes through both slow wear and rapid stress spikes, this is very important. At GMS, we keep our ISO 9001 certification up to date throughout the whole manufacturing process. This makes sure that the quality of every batch of products is the same. By chekcing and testing each parts, we can be sure that our shaft gear can be used under harsh drilling conditions for important projects.

Why Choose Shaft Gear 30151960 for Top Drive System？

In oil and gas drilling, success depends on how reliable the components are. The SHAFT GEAR 30151960 works well and keeps its mechanical integrity even in demanding oilfield environment. Stability at room temperature is an efficiency benefit. Through friction and mechanical work, drilling processes produce a lot of heat. The material of this part keep their shape across the temperature ranges found in top drive systems, which prevents problems with thermal expansion that can lead to mechanical parts locking or having too many gaps. When parts meet the original specs, installation methods stay simple.

The SHAFT GEAR 30151960 works perfectly with the TDS-11SA and TDS-9SA top drive types, meeting the functional needs of these widely used systems. This flexibility makes it easy for buying teams to find new parts, since they know that the specs will work with the tools they already have. During regular service times, maintenance teams can repair old gear shafts without having to make a lot of changes or get special tools. This serviceability cuts down on the time and money needed for labor-intensive part replacements, which improves total operating efficiency.

Procurement Considerations for Industrial Supply Chains

The drilling business needs parts that work effectively even in demanding situations, so choosing a quality provider is important. While searching for trusted sources for SHAFT GEAR 30151960, there are a few things that should be carefully thought through. When planning for repair, lead time is the first condiseration. Unexpected breakdowns of parts need to be replaced quickly to keep drills going as smoothly as possible. GMS Supply keeps large stock of these critical components in hand and promises that lead times are short and repair tasks can be done quickly. Their delivery network efficiently serves contractors and companies around the world, cutting down on the delays in logistics that make equipment breaks last longer.

Price clarity is important when making procurement decisions. Total ownership cost includes more than just the unit cost, it also includes shipping costs, the cost of keeping supplies, and any costs that might come up because of a component failing. Instead of just caring the original buy price, the evaluation should take all of these things into account. When buying quality SHAFT GEAR 30151960 from a reputable source, they often end up being more valuable because they last longer and need less upkeep. GMS makes it possible for us to fully track the production of each top drive spare part. This helps make sure that requirements are met for critical oil and gas drilling operations.

Installation and Maintenance Best Practices

Correct installation establishes the foundation for long-term component performance. The SHAFT GEAR 30151960 requires careful handling during replacement procedures to avoid damage to precision surfaces. Maintenance personnel should clean mating surfaces thoroughly before assembly, removing contamination that creates alignment issues. Torque specifications for fasteners securing the gear shaft must be followed precisely. Under-torqued connections allow movement that generates fretting wear and loosening, while over-torquing creates stress concentrations that may lead to fastener failure or component damage. Using calibrated torque wrenches ensures proper clamping force during assembly. What's more, workers should verify the lubrication system function after component replacement, confirming adequate oil flow reaches all critical surfaces.

Routine inspection identifies developing issues before they progress to SHAFT GEAR 30151960 failure. Visual examination during scheduled maintenance intervals can reveal early-stage wear patterns, contamination, or lubrication deficiencies requiring corrective action. Detecting problems early allows planned repairs during convenient service windows rather than responding to unexpected failures during drilling operations. This condition-based approach optimizes component replacement timing, maximizing service life while maintaining operational reliability.

Enhancing Operational Efficiency with Quality Components

Drilling operations measure success partly through minimizing non-productive time. Every hour of equipment downtime represents a lost opportunity in expensive drilling projects where daily operating costs run into tens of thousands of dollars. Reliable parts like the SHAFT GEAR 30151960 contribute directly to operational efficiency by maintaining system availability. Substandard components exhibit shortened service life, creating more frequent replacement needs and higher failure rates during operation. Quality components manufactured to proper specifications demonstrate predictable wear patterns and longer intervals between service requirements, supporting maintenance planning and budget forecasting.

Top drive systems represent substantial capital investments requiring careful lifecycle management. Component selection influences overall system reliability and maintenance costs throughout the equipment's service life. Choosing quality SHAFT GEAR 30151960 supports asset management objectives by extending system life and optimizing maintenance expenditures. Replacement parts meeting or exceeding original specifications maintain system performance characteristics over time. Maintaining equipment performance through quality component selection protects the initial capital investment and delays expensive system replacement or major overhaul requirements.

Conclusion

The SHAFT GEAR 30151960 fulfills a specialized but essential role in top drive pipe handling systems used throughout oil and gas drilling operations. This compound gear shaft within the shot pin assembly enables reliable pipe manipulation during drilling sequences where equipment responsiveness and mechanical precision directly impact operational safety and efficiency. Procurement teams selecting quality components from reliable suppliers support operational objectives through reduced downtime, predictable maintenance requirements, and extended equipment service life. GMS combines manufacturing excellence with responsive customer support, providing industrial clients with the reliable SHAFT GEAR 30151960 and aftersales services needed to maintain critical drilling equipment.

FAQ

1. What makes SHAFT GEAR 30151960 compatible with specific top drive models?

The SHAFT GEAR 30151960 features dimensional specifications and mechanical characteristics engineered for integration with TDS-11SA and TDS-9SA top drive systems. Compatibility verification should always be done when confirming application suitability for specific equipment configurations.

2. How do lead times affect procurement planning for this component?

Inventory availability significantly impacts maintenance scheduling and operational planning. GMS maintains a stock inventory of SHAFT GEAR 30151960, enabling rapid fulfillment that supports responsive maintenance operations. This availability reduces the risk of extended downtime waiting for component delivery during unexpected failures, allowing maintenance teams to restore equipment to service quickly.

3. What quality indicators should procurement teams evaluate when selecting suppliers?

ISO 9001 certification demonstrates systematic quality management throughout manufacturing processes. Material verification, dimensional accuracy documentation, and traceability records provide evidence of manufacturing standards.

Partner with GMS for Reliable SHAFT GEAR 30151960 Supply

GMS stands ready to support your procurement requirements with quality SHAFT GEAR 30151960 components manufactured to exacting standards. Our ISO 9001 certified production processes ensure every part meets dimensional and performance specifications for reliable integration with your TDS-11SA and TDS-9SA top drive systems. With over ten years of industry experience, we understand the critical nature of drilling operations and the importance of component reliability for maintaining operational uptime. Contact our technical sales team at sales@gmssupply.com for detailed quotations, technical specifications, and availability information. As your trusted SHAFT GEAR 30151960 supplier, we provide comprehensive after-sales support, ensuring you receive not just components, but complete solutions backed by responsive service and technical expertise.
