Shim 110147 Reservoir Mounting Specs & Thickness Guide

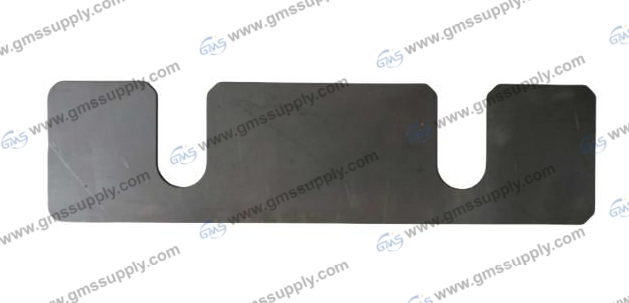

When you're in charge of important tools for oil and gas digging, accuracy is important at every level, right down to the smallest part. This is the SHIM 110147, a precision-engineered spacing part made just for fitting reservoirs in NOV Varco TDS-11SA and TDS-9SA top drive systems. This reservoir fitting shim solves problems with alignment and tolerance changes that have a direct effect on how well the equipment works and how long it can be used. This part (OEM No: 110147 | GMS No: 11S00066-69) comes in four different thicknesses: .002", .005", .010", and .031". It makes sure that your reservoir sits perfectly straight by getting rid of stress points and keeping parts from breaking too soon in tough drilling settings.

Understanding Shim 110147 Specifications and Dimensions

Choosing the right shim width can mean the difference between running smoothly and having to pay a lot for downtime. There are four carefully made thickness variations of the SHIM 110147 to meet the different gap needs of your top drive system. The .002-inch option is good for small changes where tolerances are tight. The .005-inch and .010-inch options are better for moderate spacing needs that come up during regular repair rounds. Larger gaps can appear after a lot of use or when old parts are replaced, which is why the .031-inch width was added.

The makeup of the material has a big effect on how well the shim works in the rough conditions that are common in drilling operations. Good reservoir fitting shims are made of materials that don't bend when bolts are tightened, keep their shape when temperatures change, and can handle being exposed to drilling mud and hydraulic fluids. The smooth edges keep matching surfaces from getting damaged during installation, and the controlled flatness and parallelism make sure that the load is spread evenly across the mounting interface. In straight terms, these traits mean that parts will last longer and need less upkeep.

Strict tolerances are used to keep the dimensions accurate so that they fit correctly with NOV Varco TDS-11SA and TDS-9SA mounting brackets. The shim's size fits perfectly with the mounting pattern on the tank, so no changes need to be made in the field. This careful planning stops stress buildup from happening, which could weaken the structure over time. When you're looking for new parts, making sure that these measurements match the ones your equipment needs will keep you from running into compatibility problems that slow down fixes.

How to Install and Use Shim 110147 Correctly

Preparing the area well is the first step in a proper fitting of SHIM 110147. Clean the reservoir, fixing base, and the mounting plate to get rid of any dirt, old gasket material, or rust. Even tiny bits stuck between surfaces can make the load distribution uneven, which is what precision shimming is supposed to do. Make sure that the metal-to-metal touch areas are completely clean and dry before moving on by wiping them down with a clean, lint-free cloth and the right solvent.

The thickness choice you need depends on how exactly you measure the gap. You can get the accuracy you need for this reading with digital callipers or feeler gauges. Multiple readings should be taken around the mounting edge because gaps don't stay exactly the same because of differences in how they were made or how they wear. If you choose a shim thickness that is close to the biggest gap you measured, you won't have to force parts together, which could damage the reservoir or mounting bracket.

Carefully place the shim before tightening any screws. All of the bolt holes on the part should line up correctly, and the part should sit flat against the mounting surface. If you slide the shim into place after inserting the bolt, you could catch the ends and cause tiny deformations. Before adding pressure, thread the bolts by hand to make sure they are lined up correctly. To make sure the clamping force is spread out evenly, tighten the nuts in a cross-pattern as directed in the repair instructions for your top drive system. This method keeps the tank from warping and makes sure it stays in the right place in relation to the hydraulic lines that are tied to it.

Comparing Shim 110147 with Alternative Solutions

In the market for industrial parts, there are different ways to place a tank. Each has its own features that affect performance and cost. Standard flat stock shims can be cut to any size, but they don't have the exact technical and material requirements of parts like the SHIM 110147 that were made just for that reason. Generic shims may be cheaper to buy at first, but they often need to be trimmed in the field, have inconsistent sizes, and can't handle the shaking and load cycles that come with top drive operations.

Peelable layered shims of the NOV TDS11SA shim are flexible because you can remove individual layers to fine-tune the thickness. Some maintenance teams like that it can be adjusted, but the layered design means that the layers could move apart when the machine shakes, which would make the alignment worse over time. When used for a long time, solid shims keep their shape and don't separate into layers as layered alternatives can. This means they always work the same way.

SHIM 110147 stands out because of how well it is made and how well it is designed for its purpose. The production process is backed by ISO 9001 certification, which guarantees consistent measurement accuracy across runs. This is very important when you're taking care of multiple top drive units and need parts that can be swapped out. The four separate thickness choices cover the range of gap adjustment needs that are likely to come up in field repair, so there is no need to guess when buying. Standardisation makes it easier to keep track of supplies and lowers the chance of choosing the wrong part during emergency fixes.

Purchasing Guide for Shim 110147: Suppliers, Pricing & Availability

Finding industrial parts means finding a balance between quality control and how quickly you can get what you need. Authorised sellers work directly with manufacturers to make sure you get parts that are made to your specifications and not copies that aren't up to par and may break early. For precision parts, where dimensional correctness has a direct effect on how well the equipment works, the trustworthiness of the supplier is even more important. Make sure that any possible sources can give you the material certifications and dimensional inspection records that your quality management system needs.

Lead times have a big effect on plans for upkeep and keeping track of inventory. Keeping important parts like reservoir fitting shims in stock will keep your facility from having to shut down for long periods of time when they need to be replaced. Most of the time, bulk buying deals save you money and make sure that you can get the parts you need when you need them. Talking to sellers about how you plan to use their products will help them keep the right amount of stock on hand and may even qualify you for big discounts that lower your maintenance costs.

Precision-engineered parts are priced based on how well they are made, what materials are used, and how much it costs to supply them. If the price is unusually low, it's likely that the quality has been lowered because of poor materials, loose standards, or poor quality control. These savings are quickly lost when low-quality shims break when they're loaded, need to be replaced during the same repair cycle, or cause other parts to fail. When you ask for thorough quotes that include information about the materials used, the standards for manufacturing, and the inspection procedures, you can compare prices based on the total value, not just the original cost.

Both prices and shipping times of the Varco TDS11 top drive system overhaul parts are affected by where something is located. Suppliers with well-established transportation networks can offer reliable arrival times and quick help when needed right away. Knowing how customs work, what paperwork is needed for imports, and the different shipping choices can help you make more accurate plans for when to buy things. A lot of industrial buyers keep ties with more than one seller in different parts of the world to make sure they always have supplies and can get good deals without sacrificing reliability.

Building Trust: Brand Information and Support for Shim 110147 Buyers

GMS has been working with the oil and gas drilling business for more than ten years, specialising in top drive spare parts and other important parts that keep things running smoothly. Our ISO 9001 certification shows that we are dedicated to making sure that our products meet high standards so that they work reliably in tough working circumstances. During the whole production process, from inspecting the raw materials to making sure the end dimensions are correct, we make sure that every SHIM 110147 that leaves our building meets the requirements of your equipment.

Our method of inventory puts the supply of parts that are often needed at the top of the list. We know that drilling operations don't always go according to plan and that when equipment breaks down, you need to act right away. We can ship new parts quickly because we keep common thickness differences in stock. This keeps your downtime costs as low as possible. Every time they talk to a customer, our technical support team brings real-world knowledge from the field to the table. They can help you find the right parts and fix installation problems when they come up.

Support after the sale goes beyond the initial exchange. We give you expert documents, help with installation, and quick contact to answer any questions that come up during maintenance. Our adaptable method takes into account the fact that each drilling job has its own specific needs and limitations. We work with you to find solutions that fit your business needs and budget, whether you just need a few replacement parts or want to set up a supply deal for ongoing operations. Consistently good products and reliable service are what make long-term customer relationships possible. These are the core values that guide every part of our business.

Conclusion

A small investment in precision parts like the SHIM 110147 can protect a lot of bigger things. Making sure that the reservoirs in your NOV Varco TDS-11SA or TDS-9SA top drive system are properly aligned stops stress-related breakdowns, increases the life of parts, and keeps the operating dependability that your drilling program needs. The four thickness choices (.002", .005", .010", and .031") give you the freedom to meet different gap needs while still keeping the accuracy in dimensions that is necessary for tools to work properly. Getting these parts from providers who know what the drilling industry needs and follow production quality standards will protect your heavy equipment investment and help the project run smoothly, which is what makes it successful.

FAQ

1. What thickness should I choose for my application?

Use accurate measuring tools to find the real gap at the mounting places for your tank. Choose the thickness of the shims that fits your biggest measured gap the best without having to use force to close the assembly. The .002" option is good for small changes, the .005" and .010" options are good for normal maintenance, and the .031" option is good for bigger spacing needs.

2. Can these shims be reused after disassembly?

When taking things apart, carefully check the shims. If the surface is damaged, deformed, or fretted, the part needs to be changed. In important drilling situations, replacing shims during big maintenance rounds ensures that the dimensions stay accurate, even if damage can't be seen.

Get Your SHIM 110147 Reservoir Mounting Components from a Trusted Supplier

GMS keeps all four thickness choices for SHIM 110147 (P/N 11S00066-69) in stock so that we can help you with your maintenance plans and last-minute repairs. We've been providing top drive parts to oil and gas drilling operations for ten years, so we know exactly what kind of dependability and flexibility your operations need. Email our team at sales@gmssupply.com for technical details, information on bulk prices, or to make plans for faster shipping. To make sure you choose the right parts, we offer full product documentation and application help.

References

1. American Petroleum Institute. "Recommended Practice for Top Drive Systems." API Recommended Practice 8B, 2019 Edition.

2. Society of Automotive Engineers. "Shim Stock – Metallic." SAE Standard J448, Revised 2018.

3. International Organization for Standardization. "Quality Management Systems – Requirements." ISO 9001:2015 Standards Documentation.

4. National Oilwell Varco Technical Publications. "TDS-11SA Top Drive Maintenance Manual." NOV Service Documentation Series, 2020.

5. Machinery Lubrication Institute. "Precision Alignment Techniques for Rotating Equipment." Industrial Maintenance Best Practices, 2021.

6. Offshore Technology Conference. "Reliability Engineering in Drilling Operations: Component Selection and Maintenance Strategies." OTC Technical Papers, Houston, 2022.
