Stuffing Box Packed 20614-01-30 P25SB/PK for Mission Magnum I Pumps

If your 250 series centrifugal pump starts to leak fluid around the shaft, the Stuffing box Packed 20614-01-30 P25SB/PK is the first thing you should do to avoid costly downtime. This engineered sealing assembly (P/N 20614-01-30, GMS P/N 322223 and 320614) is made to work with Mission Magnum I pumps and other models that are compatible. It seals the shaft reliably in harsh industrial settings. We at GMS Supply know that procurement managers in oil and gas drilling operations need more than just parts. They need reliable solutions that keep important equipment running all the time.

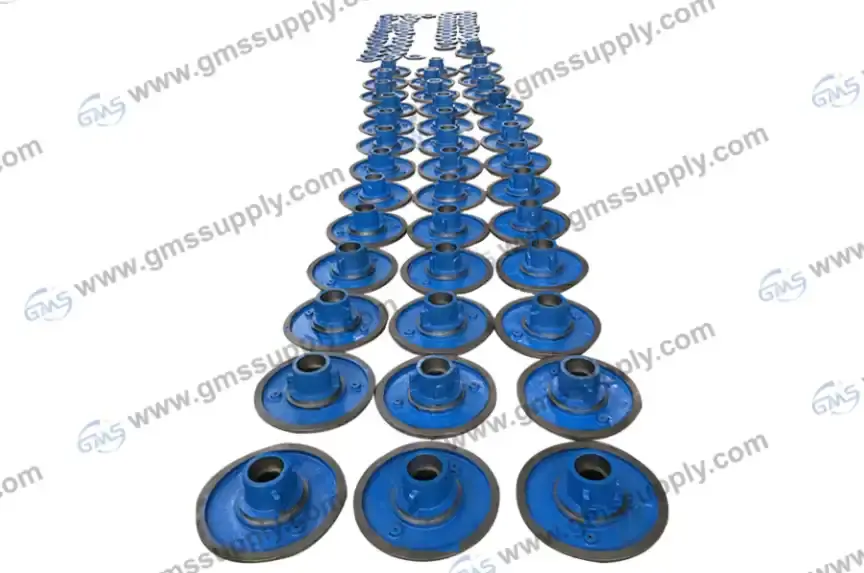

Understanding the 250 Stuffing Box F/Packing Assembly

The Stuffing box Packed 20614-01-30 P25SB/PK is the most important part of the connection between the pump body that doesn't move and the pump shaft that does. This part keeps process fluids from escaping while still allowing the shaft to move naturally while it's working. Instead of mechanical seals that need exact gaps and controlled environments, this packing-style stuffing box has been tested and shown to work reliably in places where rough particles, changing temperatures, and changing pressure are common problems.

The unit is made up of a precisely machined case that can handle working pressures and a full packing kit that is meant to make a good seal. Tight tolerances are used to machine the housing bore, which makes sure that it fits correctly with the pump shaft and that the packing material is compressed evenly. This design works with Mission Magnum I pumps and other similar 250 series centrifugal pumps made by MCM, Halco, Mattco, Harrisburg, and SPD Mud Hog. The shaft diameter is 2.5 inches.

What makes the GMS stuffing box unique is the designed packing material that comes with the P25SB/PK kit. It is important that the braided packing fibres can stand up to both heat and chemical attacks from drilling fluids. The material keeps its flexibility over a wide temperature range while also having the right frictional properties to stop leaks without generating too much heat. This balance is very important in oil pumping, where pump systems have to work all the time with changing loads.

The unit connects directly to the pump body with a bolted flange, making a strong fixing that doesn't come away from vibrations. There are parts inside that help move the packing rings into the right place and support the gland follower that applies compression. This well-thought-out design makes installation easier and makes sure that maintenance workers can service the unit quickly during planned breaks.

Technical Specifications and Material Composition

The material used for the stuffing box housing was chosen to meet the long-lasting needs of industrial pumping uses. Casting gives the structure the strength it needs to keep the bore straight under bolting loads and to keep it from deforming from thermal cycling. The pattern of the mounting flange matches the specifications for the Mission Magnum I pump, so it can be bolted up without any changes.

During the whole production process, exact measurements are kept to make sure that the shaft clearance and packing tension are correct for the MISSION/MCM pump stuffing box. The bore finish is managed so that there isn't too much friction with the packing material, and the shaft sleeve doesn't wear out too quickly. These requirements make sure that the assembly works properly, whether it's working with water-based drilling mud upstream or abrasive slurries in industrial processing plants.

The packing kit (P/N PK-20614-01-30) has several rings made of braided material that were specially made. Graphite or PTFE is often used in fibre compositions to make them less sticky and lower the friction heat. This choice of material lets the packing fit around small flaws in the shaft while still providing a good seal against process pressure. Because it is chemically resistant, the packing can be used with hydrocarbon-based fluids and other industrial chemicals that are popular in drilling and processing areas.

The temperature range goes from below freezing to high operating temperatures, so it can handle the wide range of temperatures that are common in industrial facilities and outdoor drilling sites. The packing material keeps its ability to seal without breaking easily in cold weather or getting too soft in hot weather. This thermal stability immediately leads to longer service times and less upkeep being needed.

Installation Guidelines and Best Practices

Installing the stuffing box assembly correctly is essential for getting the best sealing performance and the longest service life. First, the mounting surface of the pump housing is cleaned very well, and the shaft sleeve is checked for damage or wear. If the shaft sleeve is rough or scored, it will speed up packing wear, so it should be fixed before putting in new parts.

Using the provided bolt pattern, attach the stuffing box body to the pump. Use gasket material or sealant as directed by the pump maker. To make sure there is even compression and that the bore is lined up correctly with the axis of the pump shaft, the bolts should be torqued in a cross-pattern order. This alignment is very important—if it's not done right, the packing will wear out unevenly and fail early.

Each packing ring is put into the stuffing box bore by itself. Before adding the next ring, each one should be the right size and in the right place. The rings are usually put in place with joints that are spaced out so that there isn't a direct path for leaks through the packing set. In some cases, a lantern ring may be put between the packing rings to let flush fluid into the system. This fluid cools and lubricates the packing while keeping rough particles out of the closing zone.

After that, the gland follower is put in place and slowly tightened. Controlled leakage (usually 40 to 60 drops per minute) for the first 15 to 30 minutes of running is an important part of the initial starting process. During this break-in time, the packing can mould itself to the shaft and make good contact with the seal. When you overtighten during this phase, you create too much heat, which can hurt the packing and score the shaft sleeve. After the break-in time, the gland can be gradually made tighter until the leakage level drops to 10 to 20 drops per minute, which is a good level for upkeep.

Maintenance Strategies to Extend Service Life

A proactive maintenance method greatly increases the MISSION/MCM pump stuffing box assembly's useful life and stops it from breaking down without warning. As part of regular pump checks, the gland area should be looked at visually to see if there are any signs of excessive leakage, packing extrusion, or heat buildup. Watching the small drip rate from the stuffing box lets you know right away when the packing is breaking down before the seal fails completely.

Adjusting the gland follower on a regular basis makes up for packing compression and wear that happens during service. Small changes should be made at a time, usually one-sixth to one-quarter turn of the gland nuts. This gives the packing time to settle in between changes. Tightening too much to stop all leaks is not the best idea because it will shorten the life of the packing and put the shaft sleeve at risk of damage.

Replacement of the packing should be planned based on the number of hours used, the type of fluid, and trends in leaks. When used in rough conditions, packing may need to be changed every 2,000 to 4,000 hours. Using clean oil can make the time between treatments last up to 6,000 hours or more. When the shaft cover is being replaced, it should be checked for wear and measured. To get the sealing surfaces back to normal, sleeve replacement is often done at the same time as packing changes.

Once flush systems are installed, they need their own maintenance. It is important to check the flush lines for clogs and the flush pressure to make sure there is enough flow to the lantern ring. If the flush isn't good enough, abrasives can get into the packing zone and speed up wear. Too much flush pressure can push fluid past the packing, which can lead to leaks and packing washout that aren't needed.

Procurement Considerations for Industrial Supply Chains

To find the right stuffing box assembly, you need to pay attention to how accurate the part numbers are and how reliable the suppliers are. The designation Stuffing box Packed 20614-01-30 P25SB/PK clearly shows the packing-style arrangement for 250 series pumps. Making sure it works with your pump model, whether it's a Mission Magnum, MCM, or something from another manufacturer, saves you a lot of money and time during installation.

Lead time is a very important part of keeping spare parts in stock. GMS Supply keeps the 250 Stuffing Box F/Packing unit in stock and can usually send it within a week. This access helps with both planned repair and pressing replacement needs when broken equipment threatens to stop operations. Having reliable access to replacement parts cuts down on the need for keeping too much safety stock on hand and speeds up the repair process.

When looking for parts for industrial pumps, quality control is very important. GMS products are made using processes that are ISO 9001 certified, which guarantees that the sizes and materials are always exactly the same. This certification gives people who work in buying written quality standards that meet foreign standards. Traceability throughout the manufacturing process lets you check the makeup of the materials and make sure they are made according to the design specs.

The original buying price is only one part of the total cost of ownership. The cost of buying the stuffing box assembly is important, but what matters most in the long run is how easy it is to install, how long it lasts, and how well the supplier can help with technical issues. Even though they cost less at first, parts that need to be adjusted or replaced too soon end up costing more in the long run. The GMS method focuses on performance that meets the needs of your application. This lowers overall maintenance costs by allowing for longer service intervals and reliable operation.

The buying process goes more smoothly when you work with sellers who understand your business needs. Technical questions about compatibility, installation, or troubleshooting can be answered directly, which cuts down on the time needed to look for answers. GMS has worked with industrial clients for more than ten years, learning how to handle the unique problems that come up in big industrial settings, food processing plants, and oil and gas drilling operations.

Why GMS Supply Delivers Value for Mission Magnum I Pump Components

When you choose GMS as your stuffing box provider, you get clear benefits based on their production skills and dedication to customer service. Our ISO 9001 certification shows that we follow international standards for quality management, making sure that every part meets the requirements. This organised way of checking quality keeps differences between runs of production to a minimum, so new parts always work the same way, no matter when they were made.

We can quickly meet your purchasing needs because we keep a lot of inventory on hand. When a broken pump risks production plans, having to wait weeks for new parts is bad for business and the bottom line. Because we keep the Stuffing box Packed 20614-01-30 P25SB/PK (GMS P/N 322223 and 320614) in stock, repairs can be done quickly and without any long wait times. This means that your equipment can be used again right away.

When you combine competitive prices with reliable performance, you get real value. Parts that break down too soon or need too much maintenance will raise your overall costs because you'll lose production, have to pay workers more than once, and use more parts. GMS goods are designed to have the same service life as the original equipment while also giving you cost savings that help you reach your cost management goals.

Technical help lasts after the sale is made. To help your maintenance teams do their jobs better, you can ask questions about installation, get help with troubleshooting, and get application advice. This kind of help is especially useful when adding new parts to old equipment or dealing with strange operating conditions. Our ten years of experience in a variety of industries give us useful information that can help your team do its job better.

Global shipping makes sure that where you live doesn't stop you from getting good parts. We can make sure that your deliveries are made on time, no matter if your operations are mainly in North American drilling areas or spread out across international sites. This flexibility in logistics and quick contact makes the buying process easier for busy supply chain workers who are in charge of multiple locations for equipment.

Conclusion

The Stuffing box Packed 20614-01-30 P25SB/PK is a useful way to seal Mission Magnum I pumps and other 250 series centrifugal pumps that are compatible. Its packing-based design has been tested and shown to work reliably in harsh industrial settings, especially in oil and gas drills, where equipment needs to keep working even when conditions are tough. The uptime and operating effectiveness of the pump are directly affected by how well this part is chosen, installed, and maintained. GMS Supply offers high-quality manufacturing, a large inventory, and helpful customer service to provide value throughout the lifecycle of a component. This helps procurement professionals and maintenance teams keep important equipment in good shape.

FAQ

1. What makes the P25SB/PK configuration suitable for Mission Magnum I pumps?

The designation Stuffing box Packed 20614-01-30 P25SB/PK means a packing-based stuffing box that is just the right size for shafts with a diameter of 2.5 inches, which are common in Mission Magnum I and other similar 250 series centrifugal pumps. Included is a packing kit with materials made for drilling mud and industrial fluids that are resistant to chemicals and stable at high temperatures. This design works better than mechanical seals for shaft movement and small misalignments, so it can be used on mobile drilling rigs and in places where precise alignment is hard to keep up.

2. How often should the packing be changed when oil drilling?

How often they need to be replaced depends on how rough the fluid is, how long they've been used, and how much they leak. When using drilling mud with a lot of solids, the packing needs to be changed every 2,000 to 4,000 hours of use. With cleaner fluids, cycles may be pushed back to 6,000 hours. By keeping an eye on the drip rates and adjusting the gland follower, you can tell early on when replacement is needed. Planned replacement during routine maintenance keeps critical operations from being interrupted by failures that were not expected.

3. Can this stuffing box accept mechanical seals instead of packing?

There are different versions of the 250 series filling box housing that can be set up for either packing or mechanical seals. The P25SB/PK model is made to be used for packing service. To change between configurations, you need the right housing version and seal parts that work with your shaft diameter and the way it is used. Get in touch with GMS's technical help to talk about your particular pump model's seal conversion choices.

Partner with GMS Supply for Your Centrifugal Pump Component Needs

For your buying needs, GMS Supply is ready to help you get the Stuffing box Packed 20614-01-30 P25SB/PK and other centrifugal pump parts. We are a well-known supplier with ISO 9001 certification and more than ten years of experience working with industrial clients. We offer quality products backed by technical know-how and helpful customer service. Our stock of Mission Magnum I suitable parts means that we can quickly complete your orders when your business needs to turn things around quickly. Contact our team at sales@gmssupply.com to talk about your specific application needs, get technical specs, or get prices for single units or large orders. We work directly with distributors, procurement managers, and maintenance supervisors to offer flexible solutions that lower your operating costs while keeping your equipment reliable.

The above-mentioned brands are used for part number reference only. GMS is not an authorized agent or representative of any of the brands mentioned.
