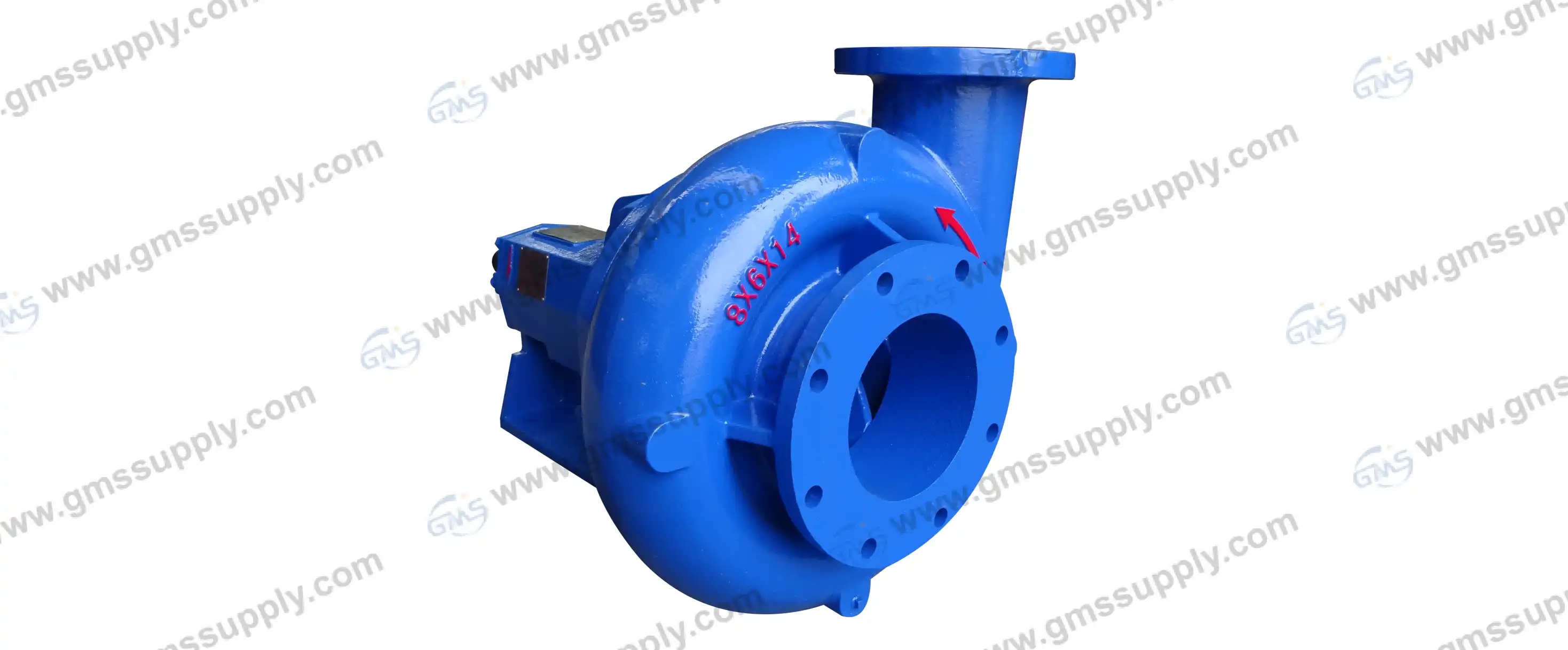

What Are the Main Components of the GMS 250-8X6X14 Centrifugal Pump?

Understanding the main components of the GMS 250-8X6X14 Centrifugal Pump is essential for anyone in the oil and gas drilling industry seeking reliable, cost-effective equipment solutions. The GMS 250-8X6X14 Centrifugal Pump comprises several critical components including the impeller, casing, shaft, bearings, mechanical seal, and stuffing box. Each component works synergistically to deliver exceptional performance in demanding applications such as solid control systems and cementing operations. These replacement pumps are designed to match or exceed the performance of original equipment from brands like MISSION Magnum, MCM, Halco, and Mattco while offering significant cost advantages.

​​

​

Core Components of the GMS 250-8X6X14 Centrifugal Pump

The GMS 250-8X6X14 Centrifugal Pump is engineered with precision-designed components that work together to deliver reliable performance in challenging drilling environments. At the heart of this pump for drilling mud applications lies the impeller, which serves as the primary energy conversion component. The impeller features a semi-open design with wider vanes that are specifically engineered for handling abrasive drilling fluids and slurries commonly encountered in oil and gas operations. This design incorporates increased recirculation areas that significantly reduce wear when pumping drilling mud containing suspended solids. The impeller rotates at high speeds, creating centrifugal force that propels the fluid from the center outward, increasing both velocity and pressure. In the GMS 250-8X6X14 model, the impeller measures 14 inches and is constructed from high-hardness materials, typically Magnachrome with a 400 Brinell hardness rating, ensuring exceptional durability against the corrosive and abrasive nature of drilling fluids. The open vane design prevents recirculation issues common in closed impeller systems, while the back vanes feature the same curvature as the front vanes to minimize turbulence at the suction point. This sophisticated impeller design directly impacts the pump's efficiency and its ability to maintain consistent performance throughout extended drilling operations, making it an ideal centrifugal slurry pump for demanding applications.

Casing and Housing Assembly

The casing of the GMS 250-8X6X14 Centrifugal Pump represents a significant engineering advancement in centrifugal slurry pump technology. This component employs a concentric casing design that is approximately thirty-seven percent thicker than conventional pump casings found in standard equipment. This robust construction serves multiple critical functions in the pump assembly. First, it acts as a pressure containment vessel that safely handles the high pressures generated during drilling operations, particularly when pumping heavy drilling mud with high specific gravity. Second, the casing converts the high-velocity kinetic energy generated by the impeller into static pressure energy through its carefully engineered internal geometry. The increased wall thickness provides superior resistance to erosion and corrosion caused by abrasive particles in the drilling fluid, extending the service life of the pump significantly. The casing also features strategically placed jack bolts that allow for mechanical removal during maintenance procedures, eliminating the need for pry bars or hammering that could damage the casing or pedestal. This design consideration reduces maintenance time and costs while protecting the integrity of the equipment. The GMS 250-8X6X14 casing is constructed from high-hardness materials with a Brinell hardness rating of 600, ensuring it withstands the demanding conditions of solid control and cementing applications. The concentric design also reduces bearing loads and shaft deflection that typically occur at near-shutoff flows, contributing to extended bearing life and reduced maintenance requirements.

Shaft and Bearing System

The shaft assembly in the GMS 250-8X6X14 Centrifugal Pump is engineered for heavy-duty performance and extended operational life. This pump for drilling mud features a robust two-and-a-half-inch diameter alloy steel shaft, which is substantially larger than shafts used in conventional centrifugal pumps. The oversized shaft design provides several critical advantages for drilling operations. It offers superior resistance to deflection under load, maintains precise alignment during operation, and transmits torque efficiently from the motor to the impeller with minimal energy loss. The shaft is protected from wear by a stainless steel shaft sleeve that covers the portion exposed to the pumped fluid. This replaceable sleeve design protects the actual shaft from erosion and corrosion, significantly extending the shaft's service life and reducing replacement costs. The shaft sleeve also serves to position the impeller correctly and can be easily replaced during routine maintenance without requiring shaft replacement. The bearing system comprises both outboard double-row bearings and inboard roller bearings that are specifically sized to handle all loads generated by impeller rotation. These bearings are typically standard ball-type anti-friction bearings, lubricated by either grease or oil depending on the specific configuration. The bearing arrangement is designed to provide extended service life even under the demanding conditions of continuous drilling operations. Proper bearing design and maintenance are critical because bearing failures represent one of the most common causes of pump downtime in drilling operations. The GMS replacement pump's bearing system is engineered to minimize friction, support radial and axial loads effectively, and provide reliable operation throughout the pump's service life, making it a dependable choice for drilling contractors seeking to reduce operating costs.

Performance Specifications and Applications

The GMS 250-8X6X14 Centrifugal Pump delivers exceptional performance characteristics that make it the preferred choice for oil and gas drilling operations. This pump for drilling mud is specifically designed for applications on drilling rigs operating at depths exceeding three thousand meters, where high viscosity and heavy specific gravity drilling fluids are commonplace. The pump configuration, designated as eight-by-six-by-fourteen, indicates an eight-inch suction inlet, six-inch discharge outlet, and fourteen-inch impeller diameter. This sizing provides optimal hydraulic performance for solid control systems and cementing operations. The pump is rated for continuous service in applications up to two hundred horsepower and can handle flow rates up to three thousand four hundred gallons per minute with pressure heads reaching five hundred fifty feet. These robust specifications ensure the pump can meet the demanding requirements of modern drilling operations. The GMS 250-8X6X14 serves multiple critical functions in drilling systems, including mud circulation, mixing operations, and feeding fluid to desanders and desilters in solid control systems. It also performs excellently in cementing applications where precise fluid handling is essential for wellbore integrity. The pump's compatibility with existing equipment from brands such as MISSION Magnum, MCM, Halco, Mattco, Harrisburg, and SPD Mud Hog makes it an attractive replacement option for drilling contractors and engineering procurement companies. The GMS replacement pump offers the same performance and reliability as original equipment while providing significant cost advantages, making it ideal for budget-conscious operations or non-critical component replacements.

Quality Assurance and Manufacturing Standards

Global Machinery Supply Co., Ltd. has established rigorous quality control procedures to ensure that every GMS 250-8X6X14 Centrifugal Pump meets international standards and customer expectations. With over fifteen years of specialized experience in drilling machinery supply, GMS has developed comprehensive expertise in manufacturing high-quality replacement components for the oil and gas industry. The company holds ISO 9001 certification, demonstrating its commitment to maintaining effective quality management systems throughout all production processes. This certification ensures that products are manufactured under controlled conditions with consistent quality standards from raw material selection through final assembly and testing. Every component of the GMS 250-8X6X14 pump undergoes strict quality inspections at multiple stages of production. The manufacturing process incorporates precision machining, appropriate heat treatment for material hardening, and thorough dimensional verification to ensure components meet exact specifications. Material selection is carefully controlled to ensure components possess the appropriate hardness, corrosion resistance, and mechanical properties required for demanding drilling applications. The company's quality philosophy extends beyond manufacturing to encompass comprehensive after-sales support. GMS maintains extensive inventory stocks to ensure rapid delivery of replacement parts, typically offering lead times of one week or less for most components. This short lead time is critical for drilling operations where equipment downtime can result in significant project delays and increased costs. The company also provides responsive technical support, typically replying to customer inquiries within two hours, helping customers quickly resolve issues and minimize operational disruptions. This commitment to quality and customer service has established GMS as a trusted supplier for drilling contractors, equipment distributors, and engineering procurement companies worldwide.

Cost Advantages and Value Proposition

Choosing the GMS 250-8X6X14 Centrifugal Pump replacement offers compelling economic advantages for drilling operations without compromising performance or reliability. As a specialized manufacturer of replacement components, GMS can provide pumps that match or exceed the performance of original equipment at significantly lower costs. This price advantage makes the GMS centrifugal slurry pump particularly attractive for budget-conscious operations, routine component replacements, or applications where original equipment pricing may not be justified. The cost savings extend beyond the initial purchase price to include reduced maintenance expenses due to the pump's durable construction and readily available spare parts. The pump's design emphasizes serviceability, with features such as easily removable stuffing boxes, mechanically removable casings using jack bolts, and replaceable wear components that can be changed quickly without specialized tools or extensive disassembly. These design considerations minimize maintenance labor costs and equipment downtime, directly contributing to improved operational efficiency and profitability. The availability of spare parts is another significant economic advantage. GMS maintains large inventories of components and can typically fulfill orders within one to two weeks, ensuring that unexpected failures or scheduled maintenance do not result in extended equipment downtime. This rapid parts availability is particularly valuable for drilling operations where rig time is expensive and project schedules are demanding. Additionally, the pump's interchangeability with equipment from multiple original manufacturers provides operational flexibility and can help standardize spare parts inventory across mixed equipment fleets. For companies operating in the oil and gas exploration, mining, or construction industries, the GMS 250-8X6X14 represents an intelligent investment that delivers reliable performance while supporting cost management objectives. The combination of competitive pricing, robust construction, comprehensive technical support, and readily available spare parts makes this replacement pump an excellent value proposition for professional drilling operations seeking to optimize their equipment investments without sacrificing quality or reliability.

Conclusion

The GMS 250-8X6X14 Centrifugal Pump represents an outstanding replacement solution for drilling operations, combining robust engineering with exceptional value. Each component is meticulously designed to deliver reliable performance in demanding solid control and cementing applications while offering significant cost advantages over original equipment. By choosing GMS replacement pumps, companies benefit from ISO-certified quality, extensive industry experience, and comprehensive support services that ensure operational success.

Ready to optimize your drilling operations with cost-effective, reliable pump solutions? Global Machinery Supply Co., Ltd. stands ready to serve as your trusted China GMS 250-8X6X14 Centrifugal Pump manufacturer, offering superior products backed by over a decade of industry expertise. As a leading China GMS 250-8X6X14 Centrifugal Pump supplier, we maintain extensive inventory to meet your urgent needs with short lead times. Our position as a premier China GMS 250-8X6X14 Centrifugal Pump factory enables us to offer competitive pricing without compromising quality. Whether you need China GMS 250-8X6X14 Centrifugal Pump wholesale quantities or individual units, we provide flexible solutions tailored to your requirements. Explore our GMS 250-8X6X14 Centrifugal Pump for sale today and discover how our competitive GMS 250-8X6X14 Centrifugal Pump price points can benefit your bottom line. Contact our expert team at sales@gmssupply.com to discuss your specific pumping requirements, request detailed specifications, or obtain a customized quotation. We respond promptly to all inquiries, typically within two hours, and our technical specialists are ready to help you select the optimal pump configuration for your application. Partner with GMS today and experience the difference that quality, reliability, and dedicated customer service can make in your drilling operations. Don't let equipment costs compromise your project success—reach out now and let us demonstrate why leading drilling contractors worldwide trust GMS for their centrifugal pump needs.

References

1. Karassik, I.J., Messina, J.P., Cooper, P., and Heald, C.C. "Pump Handbook: Fourth Edition." McGraw-Hill Professional, 2008.

2. Lobanoff, V.S. and Ross, R.R. "Centrifugal Pumps: Design and Application: Second Edition." Gulf Professional Publishing, 1992.

3. Gülich, J.F. "Centrifugal Pumps: Third Edition." Springer-Verlag, 2014.

4. Brennan, C.E. "Hydrodynamics of Pumps." Cambridge University Press and Oxford University Press, 2011.

5. Sulzer Pumps Ltd. "Centrifugal Pump Handbook: Third Edition." Elsevier Science Publishing, 2010.
