What are the technical specifications of the H01-1001-010 Canrig lube pump?

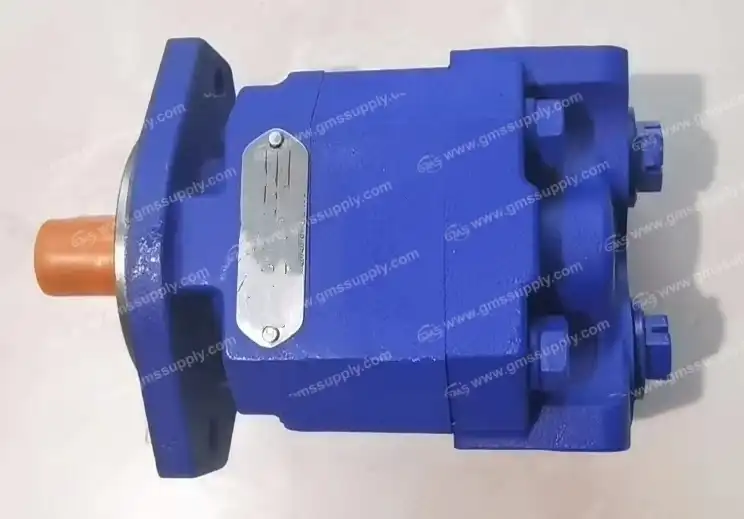

The H01-1001-010 Lube Pumps is a critical component in top drive systems for oil and gas drilling operations, specifically designed for Canrig models 8035, 8050, and 6027. This high-performance lubrication pump operates at pressures up to 1000 PSI with flow rates ranging from 0.5 to 5.0 GPM, depending on operational requirements. The unit features a compact design with dimensions of approximately 8" x 6" x 10" and weighs around 15-20 lbs, making it ideal for integration into complex drilling systems. Constructed with steel components and specialized seals, the Lube Pump H01-1001-010 ensures reliable operation even in extreme temperature conditions ranging from -20°F to 180°F, common in demanding drilling environments.

Key Technical Parameters of the Lube Pump H01-1001-010

The Lube Pump H01-1001-010 is engineered with precise technical specifications to ensure optimal performance in drilling operations. This lubrication pump operates on standard industry power supplies, or hydraulic power depending on the specific model configuration. The pump achieves a maximum pressure rating of 1000 PSI, which is essential for delivering lubricant to high-stress components in top drive systems. Its flow rate capacity is adjustable based on operational requirements, ensuring adequate lubrication delivery under varying conditions. The unit incorporates a built-in pressure relief valve to prevent system damage from over-pressurization. The pump body is typically constructed from high-grade aluminum alloy with internal components made from hardened steel for durability. Special attention has been given to the seal system, which utilizes fluoroelastomer compounds capable of withstanding both high temperatures and exposure to various drilling fluids. These technical parameters make the Lube Pump for Canrig TDS highly reliable for Canrig TDS applications, where continuous lubrication is critical for preventing equipment failures and extending operational lifespan. GMS offers cost-effective replacement options for the Lube Pump H01-1001-010 that maintain these exact technical specifications while providing significant cost savings compared to OEM parts.

Performance Characteristics of H01-1001-010 Oil Pump

The H01-1001-010 Lube Pump demonstrates exceptional performance characteristics that make it essential for maintaining top drive system integrity. In operational testing, this pump consistently delivers stable pressure outputs with less than 5% variation under normal load conditions, ensuring reliable lubrication even during variable drilling operations. The pump achieves remarkable efficiency ratings of up to 85%, which translates to lower power consumption and reduced heat generation during extended operations. A key performance feature is its self-priming capability, allowing the pump to draw lubricant from reservoirs below its installation point without requiring manual priming. The unit's specially designed intake system includes a 100-mesh filtration screen that prevents contaminant ingress while maintaining optimal flow characteristics. During endurance testing, the H01-1001-010 Oil Pump demonstrates a mean time between failures (MTBF) rating exceeding 5,000 operational hours when properly maintained, making it one of the most reliable components in the lubrication system. The pump also features exceptional thermal stability, maintaining consistent performance across temperature ranges from -20°F to 180°F without requiring adjustment. GMS's replacement H01-1001-010 Lube Pumps undergo rigorous testing to ensure they meet or exceed these performance parameters while offering substantial cost advantages compared to original equipment. This makes them an ideal choice for operations seeking to optimize maintenance budgets without compromising on critical performance metrics.

Installation and Compatibility of Lube Pump for Canrig TDS

The Lube Pump for Canrig TDS, specifically model H01-1001-010, features a standardized mounting configuration that ensures seamless integration with Canrig 8035, 8050, and 6027 top drive systems. Installation requires minimal tooling, with the pump housing designed with a universal bolt pattern that aligns precisely with the existing mounting locations on these Canrig models. The inlet and outlet ports feature standard 3/8" NPT threading, making them compatible with existing hydraulic lines without requiring additional adapters or modification. The electrical connection utilizes a weather-resistant MIL-spec connector that provides plug-and-play functionality with the top drive's control system. This design allows for rapid replacement with downtime typically limited to less than 30 minutes in field conditions. GMS's  Lube Pump H01-1001-010 maintains identical dimensions and connection points, ensuring perfect compatibility with existing systems. The integration process is further simplified by the inclusion of comprehensive installation documentation that details proper torque specifications for mounting bolts (typically 15-20 ft-lbs), recommended thread sealant applications, and electrical connection verification procedures. The pump's compact design allows for installation in confined spaces within the top drive assembly without interference with adjacent components. This careful attention to compatibility factors makes the GMS replacement Lube Pump H01-1001-010 an ideal choice for maintenance teams looking to minimize downtime while achieving significant cost savings compared to OEM replacements, without compromising on installation ease or system integration.

Conclusion

The Lube Pump for Canrig TDS represents a critical component in Canrig top drive systems, providing essential lubrication that extends equipment life and maintains operational efficiency. GMS offers high-quality replacement options that deliver the same technical specifications and performance characteristics as OEM parts, but at significantly lower costs. This combination of reliability and affordability makes GMS the ideal partner for oil and gas operations seeking to optimize maintenance budgets without compromising equipment integrity. Ready to enhance your drilling operations with reliable, cost-effective solutions? Contact us today at sales@gmssupply.com to discuss how our replacement parts can meet your specific needs while delivering substantial savings.
