Which systems use the 118511 manifold assembly?

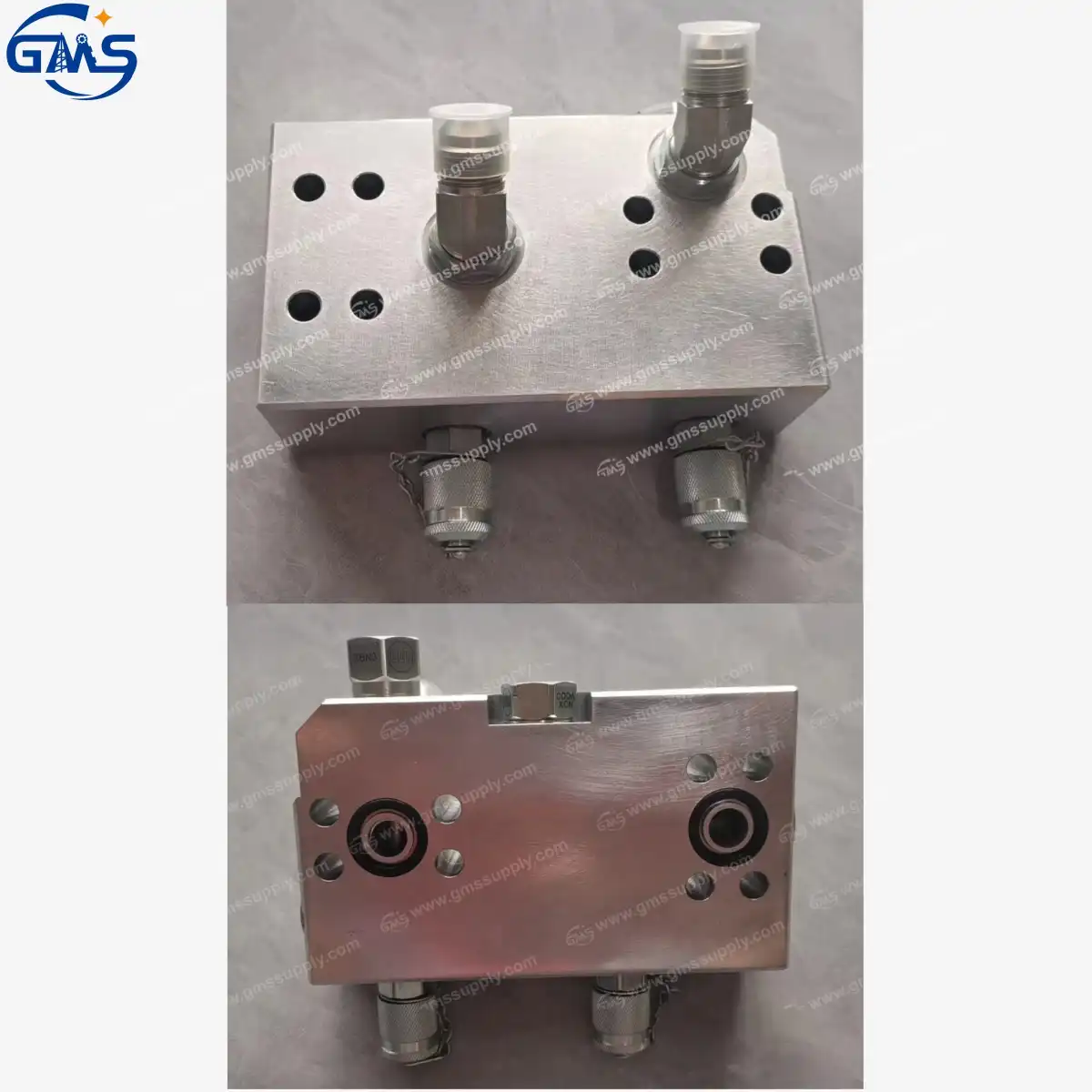

The MANIFOLD ASSY CLAMP CYLINDER 118511 is a critical component primarily utilized in top drive systems for oil and gas drilling operations. This essential assembly functions within the hydraulic clamping mechanisms of TDS-11SA and TDS-9SA top drive models, providing the necessary fluid distribution to enable precise control of the clamping cylinders. As an integral part of the drilling system's pressure control network, this manifold assembly ensures proper fluid routing and pressure regulation throughout the clamping operation, allowing for secure connection of drill pipes during drilling operations. Global Machinery Supply offers high-quality replacement options for the MANIFOLD ASSY CLAMP CYLINDER 118511 that deliver reliable performance at a significantly reduced cost compared to OEM components.

​​​​​​​

Top Drive Systems Requiring the 118511 Manifold Assembly

The MANIFOLD ASSY CLAMP CYLINDER 118511 is specifically designed for integration within NOV's TDS-11SA and TDS-9SA top drive models, which are widely deployed throughout the global oil and gas drilling industry. These sophisticated drilling systems rely on precise hydraulic control, with the manifold assembly serving as a crucial junction point for fluid distribution to the clamp cylinders. The proper functioning of this component is essential for maintaining operational integrity during drilling procedures, as it facilitates the secure connection and disconnection of drill pipes without interrupting the drilling process. Global Machinery Supply's replacement MANIFOLD ASSY CLAMP CYLINDER 118511 (Part No. 11S00769) is manufactured to ISO 9001 standards, ensuring complete compatibility with these top drive systems while offering significant cost advantages. The component's design maintains the exact specifications necessary for seamless integration within the hydraulic systems of these sophisticated drilling operations, allowing operators to maintain productivity while reducing maintenance expenses.

Critical Functions of the 118511 Manifold in Drilling Operations

The MANIFOLD ASSY CLAMP CYLINDER 118511 performs several vital functions within the drilling system's hydraulic network that directly impact operational efficiency and safety. This manifold assembly distributes hydraulic fluid to multiple clamp cylinders simultaneously, ensuring synchronized movement and consistent pressure across all clamping mechanisms. During drilling operations, this synchronization is crucial for maintaining proper torque transfer and preventing connection failures that could lead to costly downtime or safety hazards. The precision-engineered flow channels within the MANIFOLD ASSY CLAMP CYLINDER 118511 are designed to minimize pressure drops and optimize fluid dynamics, ensuring responsive clamping action even under demanding drilling conditions. GMS's replacement manifold assembly preserves these critical performance characteristics while being manufactured from high-grade materials that withstand the harsh operating environments typical of drilling operations. With stock availability and ISO 9001 certification, our replacement parts provide immediate solutions for maintenance teams facing urgent repair requirements, allowing operations to resume quickly with minimal disruption to production schedules.

Maintenance Considerations for 118511 Manifold Assembly

Regular inspection and maintenance of the MANIFOLD ASSY CLAMP CYLINDER 118511 are essential practices for ensuring the continued reliability of top drive clamping systems. Maintenance technicians should be particularly vigilant for signs of internal erosion, seal degradation, or port blockages that could compromise the manifold's performance. These issues typically manifest as inconsistent clamping pressure, slow actuator response, or fluid leakage around connection points. When replacement becomes necessary, Global Machinery Supply's alternative MANIFOLD ASSY CLAMP CYLINDER 118511 components offer a cost-effective solution that doesn't compromise on quality or performance specifications. Our replacement manifolds undergo rigorous quality control processes to verify dimensional accuracy and pressure handling capabilities, ensuring drop-in compatibility with existing TDS-11SA and TDS-9SA systems. The significant cost savings provided by our replacement parts make them particularly advantageous for operations with multiple drilling units or those managing tight maintenance budgets. With immediate availability from our extensive inventory, these ISO 9001 certified components help minimize expensive downtime while maintaining the operational standards required for safe and efficient drilling operations.

Conclusion

The MANIFOLD ASSY CLAMP CYLINDER 118511 plays an indispensable role in the proper functioning of TDS-11SA and TDS-9SA top drive systems, managing hydraulic fluid distribution to ensure reliable clamping operations during drilling procedures. By choosing GMS's high-quality replacement components, drilling operations can maintain optimal performance while significantly reducing maintenance costs without compromising safety or reliability.

Are you facing challenges with your top drive clamping systems or looking for cost-effective replacement options for your MANIFOLD ASSY CLAMP CYLINDER 118511? With our ISO 9001 certification, decade-plus industry experience, expansive inventory, and exceptional after-sales support, Global Machinery Supply is uniquely positioned to meet your equipment needs. Our replacement parts not only offer immediate availability but also deliver the performance reliability your operations demand. Contact us today at sales@gmssupply.com to discover how our flexible solutions can optimize your drilling operations while reducing your maintenance expenses.
