Hard Iron 3X2X13 Centrifugal Pump Impeller/19203-01-30A P25D233H for Drilling Rigs

When your drilling operations demand unwavering fluid handling performance, the 3X2X13 Centrifugal pump impeller/19203-01-30A P25D233H 3X2X13 centrifugal pump impeller becomes a mission-critical component. Specifically engineered as a direct replacement for MISSION P/N 19204-XX-30 and MCM P/N P25D233H, this rotating hydraulic component transfers energy from your pump motor to drilling fluids with precision. Built from hard iron material to withstand abrasive muds and slurries, it features a 3-inch suction inlet, 2-inch discharge outlet, and 13-inch diameter design. GMS offers this essential impeller under part number 250IM3213, delivering consistent pressure and flow rates necessary for solid control systems across oil and gas drilling platforms.

Understanding the Specifications and Design Features of the 250 Series Impeller

The tech behind centrifugal pump impellers used in drilling comes from years of improving how they work. There are Mission Magnum series, Halco, Mattco, Harrisburg, and SPD Mud Hog pump frames that our 250 Centrifugal Pump Impeller-3X2X13 stands will work with. Finding solid parts that work well with a lot of different kinds of equipment without having to make expensive changes is a common problem that needs to be solved by this global fitting.

In these harsh settings, the hard iron structure is what makes things last. When standard ductile iron parts are exposed to sand-filled drilling muds, they break quickly. But hard iron stays structurally sound for longer periods of time. Barite, bentonite, and polymer-thickened fluids that constantly hit the rotor vanes while the machine is running don't damage the material. This resistance to wear means that fleet managers who keep an eye on pump performance across multiple rigs will be able to do less upkeep and save money overall.

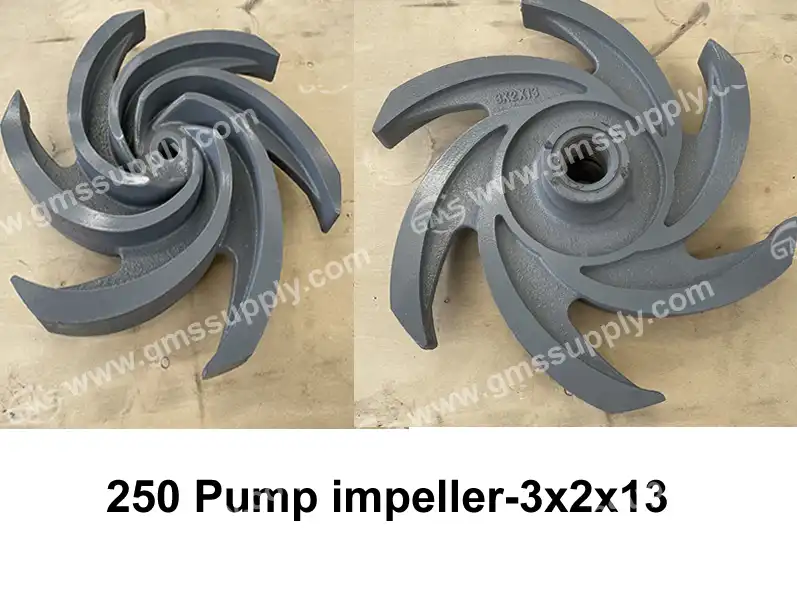

The open fan design of the 13" impeller for 250 pump can handle solids and stringy fibres without getting clogged, which is a common problem that leads to unexpected downtime during important digging stages. Particles can move through the pump chamber because the blade spacing is wide. This keeps the hydraulic efficiency high. Back pump-out vanes lower the pressure on shaft seals and lower the axial thrust on bearings, which makes nearby pump parts last longer. Together, these design elements make a strong answer for moving fluids that buying teams can be sure to choose.

Precision in measurements makes sure that there is enough space between the moving pump parts that are moving and the parts that are still. The depth of the impeller tube, the width of the keyway, and the height of the blade all fit the specs, making installation on current pump shafts easy. This interchangeability gets rid of the need to try different fittings, which slows down fixes when equipment breaks down far from big supply centers.

How 250 Series Impellers Work in Drilling Fluid Systems

Centrifugal pump impellers convert rotational energy into fluid velocity and pressure through fundamental hydraulic principles. As the motor drives the impeller at speeds reaching 3500 RPM, fluid enters through the central eye and accelerates outward along the vane surfaces. This centrifugal force creates a low-pressure zone at the inlet, drawing additional fluid into the pump while simultaneously discharging high-pressure fluid through the outlet port.

Hard iron provides mechanical advantages beyond simple wear resistance. The material maintains dimensional stability under thermal cycling common in drilling operations, where ambient temperatures fluctuate, and pumped fluids range from cool mixing water to heated process streams. This stability preserves the critical clearances between impeller and casing that determine volumetric efficiency. When clearances open due to wear on inferior materials, recirculation losses reduce effective flow rates and waste energy.

Regular inspection protocols extend impeller service life. Visual examination during scheduled maintenance reveals early-stage erosion patterns on vane leading edges—the first indicator that abrasive content in drilling fluids has increased. Monitoring these wear patterns allows maintenance teams to schedule replacements during planned downtime rather than responding to catastrophic failures. Checking the condition of back vanes provides insight into stuffing box pressure management; premature wear suggests excessive recirculation requiring adjustment of mechanical seals or packing.

Dynamic balancing maintains smooth operation throughout the impeller lifecycle. Vibration analysis during operation detects imbalances that accelerate bearing wear and create fatigue stress on pump mounting structures. Impellers meeting ISO 1940 grade G2.5 standards deliver vibration-free performance that protects surrounding equipment and maintains seal integrity. We verify dynamic balance on every unit before shipment, eliminating a common source of premature pump system failures.

Procurement Guide: Sourcing Quality Impellers for 250 Type Centrifugal Pumps

B2B procurement decisions require evaluating multiple factors beyond the initial purchase price. When sourcing 250 Centrifugal Pump Impellers for drilling operations, technical specifications must align with actual operating conditions. The 250IM3213 impeller from GMS matches MISSION P/N 19204-XX-30 (part number 641215603) and MCM P/N P25D233MRxxx, ensuring compatibility across your existing pump inventory. This cross-reference capability simplifies inventory management when your operations utilize mixed equipment brands.

Supplier credentials provide assurance that components meet performance requirements. GMS maintains ISO 9001 certification, demonstrating systematic quality control throughout manufacturing processes. This certification matters when impeller failures can halt drilling operations, costing thousands of dollars per hour in lost productivity. Documented material traceability and dimensional inspection reports verify that each component matches published specifications.

Lead time considerations affect operational planning. We maintain an inventory of common impeller sizes to support one-week delivery schedules for stock items. This rapid fulfillment capability reduces the safety stock quantities that drilling contractors must warehouse on-site or in regional supply centers. When planning major maintenance campaigns or seasonal equipment overhauls, bulk purchase options provide cost advantages while ensuring parts availability throughout extended project timelines.

After-sales support extends beyond the transaction. Technical teams available to answer application questions help procurement managers select appropriate components for specific operating conditions. When unusual wear patterns emerge or performance issues arise, diagnostic assistance identifies root causes rather than simply replacing parts. This collaborative approach builds long-term partnerships that streamline supply chain operations.

Verification of material specifications protects against substandard components entering your supply chain. Positive Material Identification through spectral analysis confirms chemical composition meets standards for wear resistance. Hardness testing validates that heat treatment processes achieved target values. These quality assurance steps prevent the introduction of inferior materials that appear identical but fail prematurely under operating loads.

Why Choose Hard Iron Impellers for Oil and Gas Drilling Applications

Material selection fundamentally determines component performance in abrasive service. Hard iron delivers superior wear life compared to standard gray or ductile iron when pumping drilling muds containing formation cuttings, sand, and treatment chemicals. The metallurgical structure resists erosion mechanisms that rapidly degrade softer materials, extending service intervals between replacements. This durability reduces maintenance labor costs and minimizes inventory carrying costs for spare parts.

Cost-effectiveness emerges from total lifecycle analysis rather than simple price comparison. While hard iron impellers command a higher initial investment than basic cast iron alternatives, the extended service life delivers a lower cost per operating hour. Fewer change-outs reduce labor expenses and limit production interruptions. For drilling contractors managing tight project schedules, reliability carries premium value that justifies material upgrades.

Compatibility with existing equipment simplifies adoption. The 3X2X13 Centrifugal pump impeller/19203-01-30A P25D233H 250 series impeller design has become an industry standard, with dimensional specifications recognized across multiple pump manufacturers. This standardization allows drilling operations to consolidate spare parts inventories, reducing the variety of components that must be stocked at remote locations. Maintenance crews familiar with one brand's equipment can service pumps from alternative manufacturers without specialized training.

Performance consistency across production batches ensures predictable results. Manufacturing process controls maintain tight tolerances on critical dimensions, eliminating the variability that causes some units to perform differently than others from the same supplier. This consistency allows operations teams to establish maintenance schedules based on actual service data rather than conservative estimates that waste component life or risk unexpected failures.

GMS brings over a decade of industry experience to every component we supply. Our understanding of drilling operations informs product development and quality standards. We recognize that pump systems operate as part of larger fluid handling networks where any weakness creates bottlenecks affecting overall productivity. This systems perspective guides our commitment to delivering components that integrate seamlessly into your existing operations.

Conclusion

Selecting the right centrifugal pump impeller directly impacts drilling operation efficiency and equipment reliability. The 250IM3213 impeller from GMS, compatible with MISSION P/N 19204-XX-30 and MCM P/N P25D233MRxxx, provides the durability and performance that oil and gas drilling demands. Hard iron construction, open vane design, and precision manufacturing combine to create a component that withstands abrasive fluids while maintaining hydraulic efficiency. With ISO 9001 certification, rapid delivery from stock, and technical support throughout the product lifecycle, we address the complete requirements of procurement professionals managing critical equipment. Making informed decisions about these essential components protects your investment in drilling infrastructure and maintains the operational continuity that project success requires.

FAQ

1. What makes hard iron better for drilling pump impellers?

Hard iron resists the abrasive wear caused by sand and formation cuttings in drilling muds. Standard cast iron degrades quickly under these conditions, requiring frequent replacements. Hard iron typically provides three to five times longer service life, reducing maintenance frequency and lowering total operating costs for drilling contractors managing multiple rigs.

2. Can I use the 250IM3213 impeller in Mission Magnum pumps?

The 250IM3213 directly replaces MISSION P/N 19204-XX-30 in Mission Magnum series pumps. The dimensional specifications match perfectly, allowing installation without modifications. This compatibility extends to Halco, Mattco, Harrisburg, and SPD Mud Hog equipment, making it a versatile solution for operations with mixed equipment fleets.

3. How do I know when to replace a centrifugal pump impeller?

Monitor performance metrics like flow rate and discharge pressure. Declining output indicates wear. During scheduled maintenance, inspect vane leading edges for erosion and check back vanes for excessive wear. Vibration increases suggest an imbalance from material loss. Replacing impellers based on condition monitoring prevents unexpected failures during critical drilling phases.

4. What documentation do you provide with impeller purchases?

We supply material certificates confirming chemical composition and hardness testing results. Dimensional inspection reports verify specifications match published tolerances. ISO 9001 certification documents our quality management system. This documentation supports your quality assurance requirements and provides traceability throughout the supply chain.

Partner with a Proven 3X2X13 Centrifugal Pump Impeller Supplier

GMS delivers the quality components your drilling operations deserve. Our 3X2X13 Centrifugal pump impeller/19203-01-30A P25D233H 250 Centrifugal Pump Impeller-3X2X13 meets the demanding specifications of oil and gas applications with hard iron construction and precision engineering. ISO 9001 certification backs every impeller we manufacture, while our large inventory supports rapid fulfillment—most orders ship within one week. We understand that equipment downtime costs money, which drives our commitment to reliable products and responsive service. Beyond selling parts, we offer technical consultation to help you select optimal components for your specific pumping requirements. Contact our sales team at sales@gmssupply.com to discuss your needs for the 250IM3213 impeller and related centrifugal pump components. Discover how partnering with an experienced supplier reduces your procurement complexity and operational costs.

The above-mentioned brands are used for part number reference only. GMS is not an authorized agent or representative of any of the brands mentioned.
