How Often to Replace the 30123440-PK Wash Pipe Packing Set

It is important to replace the 30123440-PK Wash Pipe Packing Set at the right times to keep top drive drilling systems working well. Under normal conditions, this important sealing part should be replaced every 200 to 300 rotating hours. However, things like the abrasiveness of the drilling fluid, the pressure levels, and changes in temperature can make this timeframe much shorter. Technical teams and procurement managers can avoid costly downtime and keep the integrity of the system during demanding drilling operations by spotting early warning signs and sticking to a proactive repair plan.

Understanding the 30123440-PK Wash Pipe Packing Set

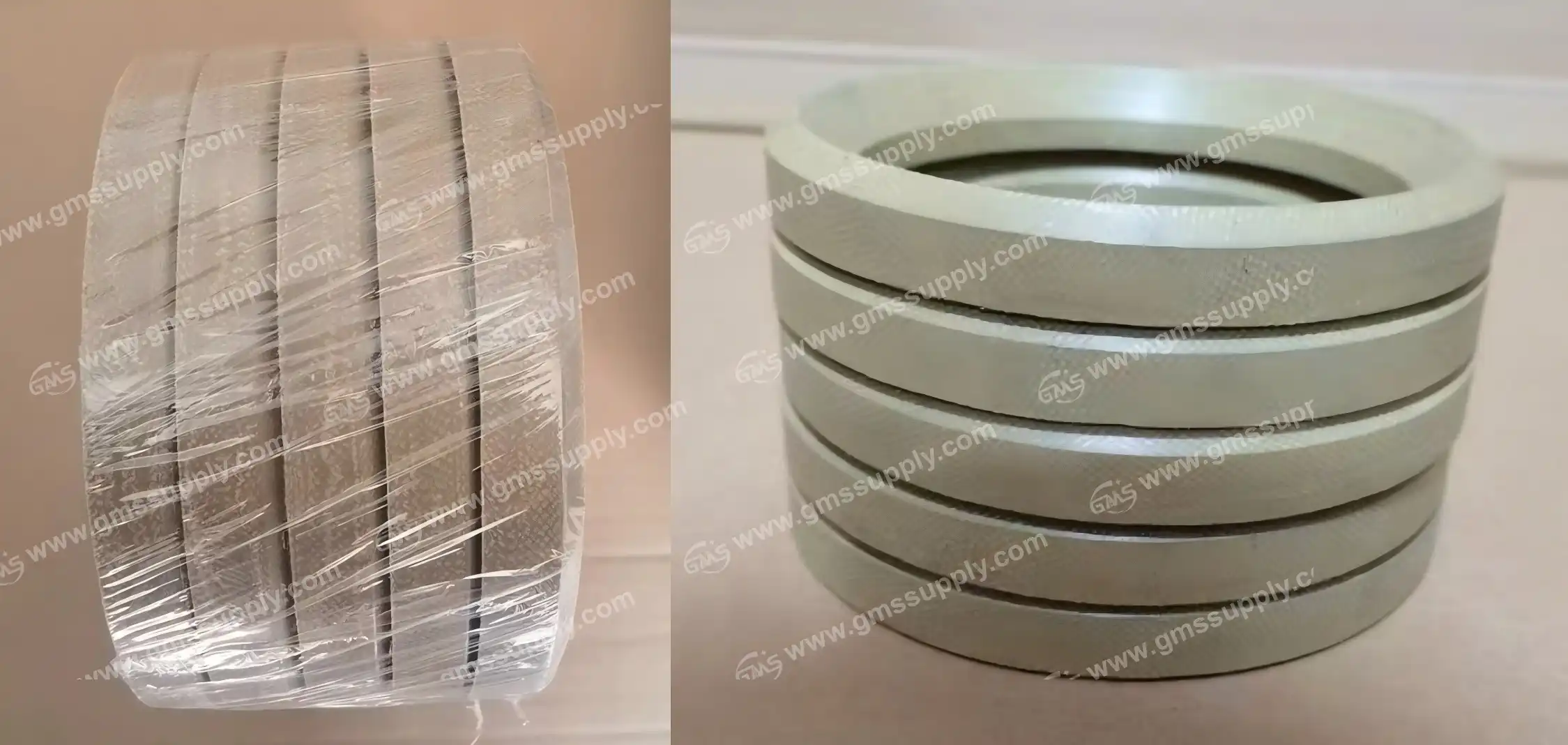

In top drive systems, the 30123440-PK Wash Pipe Packing Set is the main barrier that keeps drilling fluid from leaking during high-pressure mud circulation operations. This component, with the part number (P/N) 30123440-PK and made by GMS, is designed to work with NOV Varco top drive types such as TDS-8SA. The 30123440-PK Wash Pipe Packing Set fits inside the Wash Pipe Assembly 30123440 and creates a key point where parts that are stationary and parts that are moving meet.

This sealing solution is unique because it is made of a fabric-reinforced elastomer, which is usually Hydrogenated Nitrile Butadiene Rubber (HNBR) or specialised NBR composites. These materials were chosen because they can stand up to the hard conditions that are common in oil and gas digging sites. The set can handle operational pressures of more than 5,000 PSI and temperatures of more than 250°F. This means it can be used for drilling operations both at sea and on land, where the dependability of the equipment directly affects project schedules and costs.

The part is designed with rigid safety rings, which stop extrusion under high pressure. These rings are generally made of phenolic or brass materials. This way of building makes sure that the dimensions stay stable even if the wash pipe moves or shakes. The self-lubricating features of the material reduce friction during dry start-up conditions, which is a common situation that causes lower-quality options to break down too soon. Knowing these technical details helps procurement professionals understand why replacement intervals are so important for keeping operations running smoothly.

When and Why to Replace the 30123440-PK Wash Pipe Packing Set

To find the best replacement plan, you need to weigh the manufacturer's suggestions against actual operating data from the drilling setting you are in. While 200 to 300 spinning hours is the normal range, there are a number of things that can speed up the rate of wear. When drilling with mud systems that have a lot of solids in them, like those with sand, cuttings, or barite, the conditions are rough, which means that covering surfaces wear down faster. Also, the high-speed rotations that are typical in unconventional shale drilling generate too much heat, which breaks down elastomer materials more quickly than normal operations.

Indicators that can be seen make it clear when replacement is needed. Weeping fluid from the swivel assembly's weep holes is the clearest sign that the closing integrity of the 30123440-PK Wash Pipe Packing Set has been lost for the TDS11SA wash pipe seal. If the standpipe pressure drops quickly during circulation, it could mean that the seal has failed completely. Less dramatic but just as important are gradual increases in torque needs, strange noises during rotation, or new vibration patterns that weren't there before. These signs usually show up weeks before the whole thing breaks down. This gives you time to schedule maintenance instead of having to shut down quickly in an emergency.

There are big operational risks when replacement is put off past the recommended intervals. If the 30123440-PK Wash Pipe Packing Set fails, drilling fluid can get into the greasing systems and damage the bearings in the top drive unit. The failure of the equipment causes downtime to last from hours to days while parts are ordered and fixes are made. Not only do unplanned stoppages cost money to fix, but they also mess up drilling schedules, which affects contractual obligations and revenue projections. Safety concerns are also very important, since high-pressure fluid leaks can hurt people working on the rig floor.

According to data from oil drilling operations, planned replacement of sealing parts lowers overall maintenance costs by about 35% compared to reactive maintenance methods. This lower cost comes from being able to schedule replacements for planned downtime, combine orders for parts to save money on freight, and avoid having to pay extra for fast shipping in an emergency. When purchasing managers set clear replacement rules based on working hours and do regular visual checks, equipment uptime is always higher and lifetime costs are lower.

Maintenance and Installation Best Practices to Extend Lifespan

How long the 30123440-PK Wash Pipe Packing Set works as specified is directly related to how well it was installed. Before installing, clean the wash pipe surface very well and look for grooves, scores, or wear where the packing sits. Even small flaws on the surface can cut the life of a seal in half. If the wash pipe has wear marks on it, it needs to be replaced or re-coated before the new packing is put in. If not, the new seals will fail early, no matter how good they are. The finish on the wash pipe's surface should meet the manufacturer's requirements, which usually say that the surface should be rough between 16 and 32 microinches Ra.

During installation, use the right lubricants on the packing parts to make sure they seat properly and reduce the initial friction. When tightening retaining nuts or glands, make sure you stick to the torque specs exactly. If you don't, the nuts or glands can move and leak, and if you tighten them too much, the elastomer material can get damaged. The order in which the parts are installed is very important—the backup rings must be placed correctly in relation to the direction of pressure to stop extrusion. We suggest having detailed installation instructions on-site and making sure that maintenance staff know what needs to be done for the 30123440-PK configuration.

Regular care in between replacements greatly increases the useful life. Setting up a regular check schedule—usually once a week while digging is going on—helps find problems early on. Look for signs of weeping around the seals, keep an eye on how stable the pressure is during circulation, and write down any changes you see in the rotational resistance. Keeping the right properties for the drilling fluid helps protect the sealing parts; too many solids or the wrong fluid weights speed up wear. Making sure there is enough cooling flow through the swivel assembly stops thermal damage. This is especially important when digging for long periods of time.

The way extra 30123440-PK Wash Pipe Packing Sets are stored can also affect how well they work when they are placed for NOV Varco top drive wash pipe packing. Keep parts that aren't being used in cool, dry places that are out of direct sunlight and away from things that produce ozone, like electric motors. Even when they are stored, UV light and ozone can damage elastomer materials. When stored correctly, 30123440-PK Wash Pipe Packing Sets keep their features for three to five years. On the other hand, materials can break down in just a few months if they are kept incorrectly. We keep our warehouses at a constant temperature and humidity level so that the parts we send to our customers are always in perfect shape and ready to be used.

Why 30123440-PK Wash Pipe Packing Set Outperforms Traditional Sealing Solutions?

This 30123440-PK Wash Pipe Packing Set's fabric-reinforced elastomer design makes it much better than simpler ways to seal things. When put under pressure, traditional packing materials that don't have cloth reinforcement tend to come apart. This is especially true when used in the high-pressure settings that are common in oil and gas drills. The support layer in the 30123440-PK Wash Pipe Packing Set gives the structure strength and keeps the shape of the seal even when the pressure changes. This makes the sealing work better over the part's lifetime.

For some top drive applications, mechanical seals are an option, but they come with their own set of problems. Although mechanical seals can sometimes offer longer service intervals, they usually come with higher initial costs and need more complicated installation steps. The packing set method makes the installation process more forgiving, as it can handle small misalignments that would hurt the performance of a mechanical seal. Because of this, the 30123440-PK Wash Pipe Packing Set is especially useful in the field, where installation might not go as planned.

The choice of materials is another thing that sets them apart. The HNBR compound in good 30123440-PK Wash Pipe Packing Sets stays flexible over a wider temperature range than regular nitrile materials. When drilling moves from one formation to another or when circulation rates change a lot, this property is very important. Because HNBR is chemically resistant, it works just as well with oil-based muds, synthetic-based muds, and water-based systems. This means that it can be used in a variety of drilling programs without the need to change any parts.

Performance feedback from drilling contractors always points out that this configuration of 30123440-PK Wash Pipe Packing Sets strikes a good balance between cost and dependability. As a planned wear item, the part is meant to keep more expensive top drive parts from getting damaged. It doesn't cost much to replace compared to the damage that could happen if the seal fails, so it's a good way to protect yourself against big machine failures. Procurement experts like this steady trend of repair costs because it makes budgeting and planning inventory easier.

Procurement Guide for the 30123440-PK Wash Pipe Packing Set

To find high-quality 30123440-PK Wash Pipe Packing Sets, you need to pay attention to the credentials of the supplier and the certifications of the products. We keep our ISO 9001 license at GMS to make sure that our manufacturing methods meet quality standards around the world. We control the whole production process, from choosing the raw materials to doing the final check. This makes sure that the products always work the same way. Laser micrometre measures are used to check the sizes of each 30123440-PK Wash Pipe Packing Set. The Inner Diameter, Outer Diameter, and Stack Height all meet limits of within 0.005 inches. This level of accuracy makes sure that the crush and seal interference is set up correctly.

Verification of the material is another important quality control step. We use FTIR testing to prove the makeup of the elastomer and make sure it is resistant to the chemicals in drilling fluids. When you use a Shore A Durometer to test a material's hardness, you can be sure that it falls within the right range—usually 80 to 90 Shore A—which combines cut resistance with closing flexibility. Visual inspection finds flaws in the manufacturing process, like moulding flash, voids, or delamination in the fabric reinforcement layers. Batch traceability tools let us find the source of every part's raw material, giving us the proof we need to meet API equivalent material tracking standards.

When planning for procurement, lead times have a big effect, especially for operations that take place in remote areas. Because we keep a lot of the 30123440-PK Wash Pipe Packing Set and other commonly ordered top drive parts in stock, we can quickly fill orders. Standard stock items usually ship within 48 hours of confirmation of order, and bulk orders are given priority scheduling to make sure they arrive on time for projects. Our transportation network supports both fast air freight for pressing needs and cheap ocean shipping for planned inventory restocking. This gives procurement managers the freedom to choose the best balance between cost and delivery speed.

Prices are based on how much you order, and buying in bulk can save you a lot of money. Setting up supply agreements that guarantee availability and optimise unit costs is helpful for businesses that have more than one rig or plan long-term drilling programs. Our sales team works directly with procurement managers to make sure that orders are set up in a way that fits with budget cycles and best practices for managing supplies. We have clear prices with no hidden fees, and our guarantee covers problems with the way the product was made, so customers can be sure of its quality.

Conclusion

Setting the right replacement interval for the 30123440-PK Wash Pipe Packing Set saves drilling operations from failures that come up out of the blue and makes the most of maintenance funds. The standard service life of 200 to 300 spinning hours is a good starting point, but shorter times may be needed depending on the conditions of use. Early warning signs can be found during regular checks, which allows for planned maintenance that costs a lot less than emergency fixes. Using the right installation methods and following regular maintenance schedules will make parts last longer, giving you a better return on your investment. After learning about these factors, procurement managers and maintenance teams can keep the top drive system reliable while keeping costs low.

FAQ

1. What factors shorten the service life of wash pipe packing sets?

The main thing that speeds up 30123440-PK Wash Pipe Packing Set wear is abrasive drilling fluids with a lot of solids in them. Drilling through formations that produce fine sand or using weighted muds with barite makes it hard for sealing parts to work. High rotational speeds create friction heat that breaks down elastomers more quickly than low-speed operations. Extreme temperatures, like high temperatures at the bottom of the hole and cold temperatures on the top, test how flexible the material is. Aggressive chemicals in speciality drilling fluids can damage the rubber compound if the packing material isn't properly matched to the chemistry of the fluid.

2. Can maintenance personnel install the packing set without specialized training?

For installation, you need to know a lot about mechanics and pay close attention to the manufacturer's directions, but you don't need any special certification. Technicians who know how to do basic top drive maintenance can install the drive correctly by following the right steps. The important parts are making sure that the mating surfaces are clean, that the backup rings are in the right place, that the right amount of grease is used, and that the torque values on the hardware that holds the bearings in place are correct. Reliable results are achieved by following detailed installation instructions and doing the work in a methodical way. Contractors who have never done this before might benefit from some help during the first installation to boost their confidence and make sure they're doing it right.

3. How can operators extend the service life of the 30123440-PK Wash Pipe Packing Set?

Operators can extend the service life of the 30123440-PK Wash Pipe Packing Set through proper installation, routine inspections, and correct operating conditions. Keeping the wash pipe clean, maintaining suitable drilling fluid properties, and preventing excessive heat or pressure fluctuations can reduce seal wear. Regularly checking for leaks, vibration changes, and pressure drops helps identify problems early. Using high-quality replacement parts with verified specifications also improves sealing performance and protects the top drive system from unexpected downtime.

Partner with GMS for Reliable Top Drive Component Supply

Picking the right 30123440-PK Wash Pipe Packing Set provider is the first step to making sure that your drilling operations always have reliable closing parts. GMS has been providing ISO 9001-certified goods that meet strict industry standards to oil drilling contractors and equipment users all over the United States for more than ten years. Our large collection makes sure that the parts you need are always in stock and ready to ship, so there are no delays that could mess up your drilling schedule. Whether you need technical specs to make sure the parts will work together, big order prices for operations with more than one rig, or fast shipping to faraway places, our team is here to help you with your procurement needs. Get in touch with us at sales@gmssupply.com right away to talk about your top drive parts needs and find out how our reliable products and adaptable solutions can help you save money on maintenance costs and keep your equipment running as much as possible.
