Why Use Impeller, 14x12 Clockwise Rot. 22"/24024-X0-HS in High-Volume Fracking?

When fracking operations demand maximum throughput and reliability, choosing the right centrifugal pump impeller becomes critical. The Impeller, 14x12 Clockwise Rot. 22”/24024-X0-HS stands out as an engineered solution for blending high-volume slurries containing proppants and abrasive materials. This 22-inch diameter component is designed to handle extreme flow rates exceeding 7,500 gallons per minute while maintaining hydraulic efficiency under punishing conditions. At GMS, we understand that procurement managers and technical decision-makers need parts that minimize downtime and extend service intervals. Our ISO 9001-certified replacement impellers deliver performance that matches demanding operational standards, ensuring your blender pumps perform when it matters most.

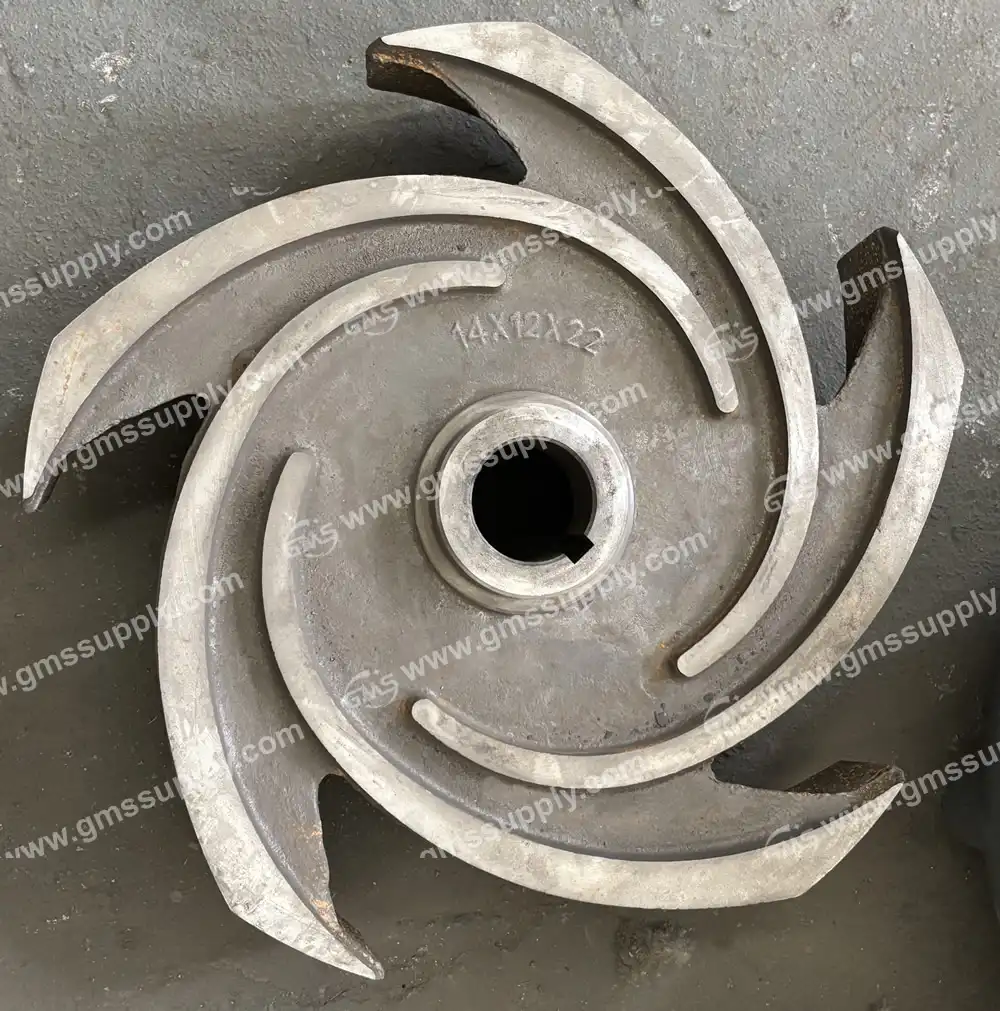

Understanding the Role of the 14x12 Clockwise Rotation Impeller in High-Volume Fracking

High-volume fracking activities put a lot of stress on the tools used to move fluids. The 14x12 clockwise rotating blade is an important part of centrifugal pumps used on blender units, which need to constantly move huge amounts of slurry that is full of sand to high-pressure pumping equipment. This particular propeller design has a 14-inch flow inlet and a 12-inch discharge exit. The trim diameter is 22 inches, which makes the most head pressure.

If you look at it from the drive end, the clockwise way of spin is designed to work with standard motor setups that are popular in mobile fracking equipment. This rotational standard is not made up on the spot—installing an impeller with the wrong rotation causes no flow output and instant damage to the mechanical seal, which causes costly, unexpected shutdowns. The vane's curve is exactly cast to efficiently speed up the flow outward, turning the motor's spinning energy into the pressure head needed to move thick slurries through discharge pipe systems.

The makeup of a material has a direct effect on how long it will last in harsh fracking settings. GMS's centrifugal pump blade is made from high-chrome alloy metallurgy, which gives it hardness numbers above 600 Brinell. This amount of hardness is necessary when pumping frac fluids that have ceramic proppants or sand ratios that would wear away softer materials quickly. As part of our production process, we perform dynamic balancing to ISO 1940-1 Grade 6.3 standards. This lowers vibrations that can harm bearings and seals over long pumping cycles. We have been providing important pump parts to the oil and gas drilling industry for more than 10 years. From choosing the raw materials to the final review, we have strict quality control measures in place to make sure that all of our production batches are the same in terms of size and metal composition.

The 22-inch impeller For MAGNUM XP Centrifugal pump is made with pump-out vanes on the rear shaft as well. These secondary vanes lower the pressure in the packing box and keep objects from building up behind the impeller face, which would speed up the wear on the mechanical seal of the pump. During multi-stage fracking jobs, where machines are usually running nonstop for 12 to 18 hours, this feature comes in very handy.

Performance Advantages of the 14x12 Clockwise Rotation Impeller in Fracking Applications

The impeller's ability to keep flow rates steady while dealing with different slurry levels is a big part of how well fracking mixer systems work. The 14x12 design with a 22-inch circle offers a number of performance advantages that directly lead to lower operating costs and faster job finishing times.

The shape of the blade and the width of the trim determine how well the hydraulic system works. When compared to smaller impellers, larger ones produce higher head pressure at the same rotating speed. This means that the pump can move slurry to equipment further downstream with enough positive suction head to keep cavitation from happening. Cavitation not only ruins the inside of the pump, but it also makes the flow unstable, which makes it hard to get the exact mixing ratios that are needed in contemporary fracking recipes. Our propeller design keeps the flow fixed over a wide working window, which can handle the changing needs that come up in real-world mixing processes.

When high-horsepower centrifugal pumps are used for long periods of time, the amount of energy they use becomes a major cost factor. When spinning energy is efficiently turned into fluid pressure, less energy is lost as heat and sound. Field studies from oil drilling operations show that impellers that are well-designed can cut the amount of fuel used by generator-powered blender units by 8 to 12 percent compared to parts that are worn out or don't fit together well. Over the course of a multi-well pad expansion job, these savings add up to a lot.

Another important benefit is that it is mechanically stable. GMS's clockwise spinning fan goes through strict dynamic balancing steps that reduce the amount of uneven forces that are still present. If the impellers aren't balanced, they put too much rotational stress on the pump bearings, which can cause the bearings to fail early and the shaft to become out of line. Our product increases the average time between maintenance visits by keeping tight balance limits. This lets workers finish more stages between planned service visits. This dependability is especially helpful in remote digging sites where it may be hard to get parts or expert help.

Abrasion resistance has a direct effect on how well the pump can keep up the design flow rates over time. The hydraulic profile breaks down as the rotor vanes wear down. This lowers the head pressure and means that the motor has to run faster to keep the target flow rates. The high-chrome alloy construction stops erosive wear from fluids that contain proppants, so the blade shape stays the same for longer than with standard metalworking methods. Procurement managers say that premium metallurgy impellers last 40 to 60 percent longer in high-solids uses, which means that parts don't need to be replaced as often, and labour costs are lower.

Selecting the Right Impeller: Factors to Consider for Procurement Managers and Engineers

Making informed purchasing decisions requires understanding how impeller specifications align with your specific pump models and operational requirements. The Mission Magnum XP centrifugal pumps represent a widely deployed platform in fracking blender applications, and ensuring component compatibility is the foundation of reliable operation.

When evaluating the 14x12 clockwise impeller, verification of pump model compatibility comes first. The GMS-XP Centrifugal pumps—Impeller, 14X12X22 (P/N GMSXP22I) is engineered as a direct replacement for Mission Magnum XP and MCM XL pump models. This interchangeability means you can install our component without modifications to pump housings, seal chambers, or shaft assemblies. The bore diameter, keyway dimensions, and axial positioning are manufactured to match the pump's mechanical interface specifications precisely, eliminating fit-up issues that delay equipment commissioning.

Beyond dimensional compatibility, procurement professionals should evaluate metallurgical specifications relative to fluid characteristics. High-chrome alloy offers superior abrasion resistance but comes at a higher initial cost compared to ductile iron alternatives. However, when pumping slurries with sand concentrations above three pounds per gallon, the extended service life of chrome alloy typically delivers a lower total cost of ownership. Our technical team can provide guidance on material selection based on your specific fluid properties and target service intervals.

Certification and quality assurance documentation matter substantially in B2B procurement. GMS maintains ISO 9001 certification, which demonstrates our commitment to consistent manufacturing processes and quality management systems. Each impeller shipment includes material test reports and dimensional inspection certificates, providing traceability that satisfies audit requirements and ensures parts meet specified performance criteria. This documentation is particularly valuable for companies managing corporate safety programs or operating under regulatory oversight.

Lead time and inventory availability directly impact project schedules. Unplanned pump failures during active fracking operations create urgent replacement needs, and delays in parts delivery translate to lost production time and contract penalties. At GMS, we maintain large inventory positions of commonly specified impeller sizes, including the 14x12x22 configuration. Our typical lead time for stocked items is one week, allowing you to minimize equipment downtime and maintain drilling schedules. This responsiveness distinguishes us from suppliers operating on build-to-order models with lead times extending six to eight weeks.

Pricing strategies should account for total acquisition cost rather than unit price alone. While our replacement impellers offer competitive pricing, the real value emerges from reduced maintenance frequency, lower expedited shipping costs during emergencies, and minimized production losses from equipment failures. Fleet managers operating multiple blender units across different drilling sites often establish blanket purchase agreements that ensure parts availability while optimizing inventory carrying costs across their supply chain.

Maintenance, Troubleshooting, and Safety for 14x12 Clockwise Rot. Impellers

Maximizing impeller service life and maintaining safe operations requires systematic maintenance practices and proactive troubleshooting. Even premium components like the GMS centrifugal pump impeller benefit from proper installation procedures and regular inspection protocols that catch developing problems before they escalate into failures.

Installation best practices begin with shaft cleanliness and proper keyway engagement. Any debris or burrs on the pump shaft will prevent the impeller from seating fully, creating axial runout that generates vibration and accelerates seal wear. Technicians should verify that the impeller slides smoothly onto the shaft and that the key fits snugly in both the shaft and impeller keyways without excessive play. Torque specifications for the impeller locknut must be followed precisely—insufficient torque allows the impeller to loosen during operation, while excessive torque can damage threads or deform components.

Clearance adjustment between the impeller face and the suction-side wear plate is critical for maintaining hydraulic efficiency. The gap should be set between 0.015 and 0.030 inches at installation. As the impeller and wear plate erode during service, this clearance opens, allowing internal recirculation that reduces head pressure. Many pump designs include external adjustment mechanisms that allow clearance restoration without complete disassembly. Regularly monitoring discharge pressure and adjusting clearance when pressure drops below baseline values can extend overall pump life substantially.

Vibration monitoring provides early warning of developing mechanical problems. Baseline vibration readings should be taken immediately after installation with the pump running at operating speed. Subsequent periodic measurements allow detection of increasing vibration levels that indicate bearing wear, shaft misalignment, or impeller imbalance from uneven erosion. Addressing vibration trends proactively prevents catastrophic failures that damage expensive pump housings and require extended repair periods.

Common faults include cavitation noise, loss of prime, and reduced flow rates. Cavitation typically indicates insufficient net positive suction head available at the pump inlet, which can result from clogged suction screens, excessive suction line losses, or operating too far right on the pump curve. Loss of prime often traces to mechanical seal leakage or air ingestion through loose connections. Reduced flow rates without corresponding pressure increases suggest impeller wear or incorrect rotation direction. Our technical support team at sales@gmssupply.com provides troubleshooting guidance to help you diagnose issues quickly and identify whether impeller replacement or other corrective actions are needed.

Safety protocols when handling large impellers are essential. The 22-inch diameter centrifugal pump impeller weighs significantly, requiring proper lifting equipment and techniques to prevent worker injury. Sharp edges on vane tips and the outer diameter can cause lacerations, so appropriate gloves and handling procedures must be enforced. During installation, verifying that all fasteners are properly tightened and that rotating assemblies have adequate clearance before startup prevents accidents and equipment damage.

Where and How to Purchase 14x12 Clockwise Rotation Impellers for Fracking Projects

Efficient procurement of critical pump components requires partnering with reliable suppliers who understand the urgency and technical requirements of oil and gas drilling operations. GMS positions itself as a responsive source for high-quality replacement impellers, backed by inventory depth and technical expertise that supports your operational continuity.

Direct supplier relationships offer several advantages over multi-tier distribution channels. Working directly with GMS eliminates intermediary markups and communication delays that complicate urgent orders. Our team maintains close familiarity with Mission Magnum XP pump specifications and application requirements, allowing us to provide accurate technical guidance on part selection and compatibility. When you contact us about the Impeller, 14x12 Clockwise Rot. 22”/24024-X0-HS (Mission P/N 24024-X0-HS, GMS P/N GMSXP22I), you speak with people who understand the difference between clockwise and counterclockwise rotation and why that distinction matters for your equipment.

Quality verification processes protect you from counterfeit or substandard components. GMS products undergo comprehensive inspection, including dimensional verification using coordinate measuring machines, hardness testing to confirm metallurgical properties, and dynamic balancing to ensure smooth operation. We provide documentation with each shipment that traces the impeller to its production batch and material certifications, giving you confidence that the part meets ISO 9001 quality standards. This traceability becomes particularly important when managing corporate procurement policies or satisfying third-party equipment maintenance audits.

Ordering flexibility accommodates both routine maintenance planning and emergency replacement scenarios. For planned maintenance activities, standard lead times of one week from our large inventory allow you to schedule work efficiently without tying up working capital in excessive on-site spare parts inventories. When unexpected failures occur during active drilling operations, our quick response capability helps minimize production losses. Fleet managers often establish framework agreements that pre-negotiate pricing and lead times for specified part numbers, streamlining the purchasing process when urgent needs arise.

Beyond the 14x12x22 impeller, GMS supplies a complete range of Mission Magnum XP centrifugal pump components, including the 12x10 clockwise rotation 23-inch impeller (P/N GMSXP23I, Mission P/N 25010-Y0-30) and the 8x6 clockwise rotation 18-inch impeller (P/N GMSXP18I, Mission P/N 25292-T0-30). This comprehensive parts coverage allows you to consolidate suppliers, reducing administrative overhead and improving supply chain efficiency across your entire pump fleet.

Conclusion

High-volume fracking operations demand centrifugal pump components that deliver consistent performance under extreme conditions. The Impeller, 14x12 Clockwise Rot. 22" / 24024-X0-HS (GMS P/N GMSXP22I) provides the hydraulic efficiency, abrasion resistance, and mechanical reliability that procurement managers need to maintain operational continuity and control maintenance costs. With high-chrome alloy construction, precise dynamic balancing, and dimensional accuracy that ensures compatibility with Mission Magnum XP pumps, this replacement impeller represents a proven solution for blender applications in oil drilling environments. By partnering with GMS, you gain access to extensive inventory, fast lead times, ISO 9001-certified quality, and responsive technical support that helps you make informed purchasing decisions and keep your equipment running when it matters most.

FAQ

1. Why is the 14x12 clockwise impeller preferred for high-volume fracking blenders?

The 14x12 configuration with a 22-inch diameter delivers the high flow rates and head pressure required to transfer large volumes of proppant-laden slurry to high-pressure pumping equipment. The clockwise rotation matches standard motor drives used in mobile fracking units, while the large diameter generates sufficient positive suction head to prevent cavitation during continuous operation. High-chrome alloy construction resists abrasive wear from sand and ceramic proppants, extending service intervals and reducing maintenance frequency compared to standard metallurgies.

2. How does rotation direction affect pump performance and service life?

Rotation direction must match the pump's drive configuration. Installing a clockwise impeller on a system designed for counterclockwise rotation results in zero flow output and immediate mechanical seal failure due to reverse thrust loads. Correct rotation ensures that vane geometry accelerates fluid efficiently, maximizing hydraulic performance and preventing premature component damage. Always verify rotation direction from the drive end before installation to avoid costly errors.

3. What factors should guide impeller selection for procurement teams?

Compatibility with your specific pump model comes first—verify part numbers match Mission Magnum XP or MCM XL specifications. Evaluate metallurgy based on fluid abrasiveness, with high-chrome alloy recommended for high-solids applications. Consider supplier certifications like ISO 9001, inventory availability to minimize lead times, and comprehensive after-sales support. Documentation, including material certifications and dimensional reports, ensures quality assurance and satisfies audit requirements.

Enhance Your Fracking Operations with GMS High-Performance Impellers

Operations managers seeking a dependable Impeller, 14x12 Clockwise Rot. 22”/24024-X0-HS supplier will find GMS offers unmatched value through our combination of quality products and customer-focused service. Our replacement impellers for Mission Magnum XP centrifugal pumps deliver performance that meets the demanding requirements of oil and gas drilling applications, backed by ISO 9001 certification and over 10 years of industry experience. With large inventory positions ensuring one-week lead times and responsive technical support to answer your application questions, we help you maintain equipment uptime and control maintenance costs. Contact our team at sales@gmssupply.com today to request detailed specifications, pricing information, or technical consultation on the Impeller, 14x12 Clockwise Rot. 22" / 24024-X0-HS (P/N GMSXP22I). Let us demonstrate how partnering with GMS strengthens your supply chain and supports your operational success.

The above-mentioned brands are used for part number reference only. GMS is not an authorized agent or representative of any of the brands mentioned.
